Chain And Sprockets, Timing: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

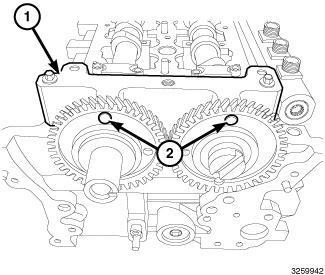

Fig 1: Camshaft Timing Tool & Sprockets Holes - Left

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Camshafts should already be timed and (special tool #VM.10338A, Tool, Camshaft Timing) installed.

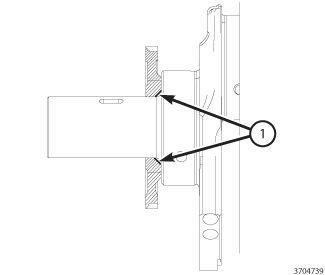

Fig 2: Crankshaft Timing Chain Sprocket With Beveled Edge

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The oil pump drive gear beveled edge (1) which should be facing the engine.

If removed, install the oil pump drive gear with beveled edge (1) facing the engine.
If removed, install the crankshaft timing chain sprocket.

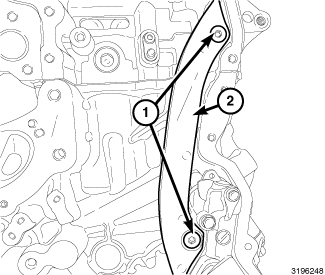

Fig 3: Left Outer Timing Chain Guide & Bolts
Courtesy of CHRYSLER GROUP, LLC
If removed, install the left outer timing chain guide (2). Tighten bolts (1) to 30 N.m (22 ft. lbs.).

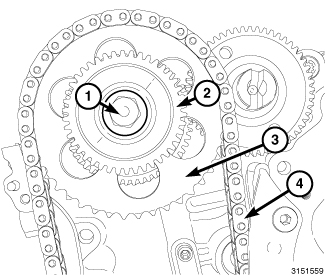

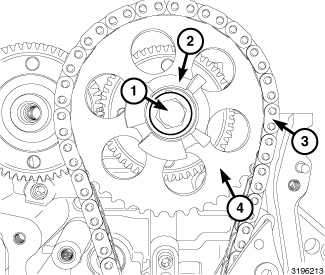

Fig 4: Camshaft Position Sensor (CMP) Reluctor Wheel, Left Camshaft Timing Chain Sprocket, Timing Chain & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the left timing chain (3) and camshaft timing chain sprocket (4).
Install the reluctor wheel (2). Tighten bolt (1) finger tight.

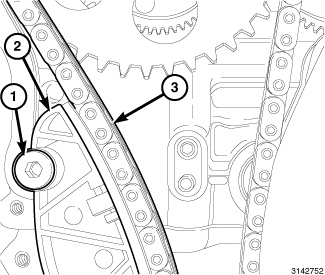

Fig 5: Left Inner Timing Chain Guide & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the left inner timing chain guide (2). Tighten bolt (1) to 30 N.m (22 ft. lbs.).

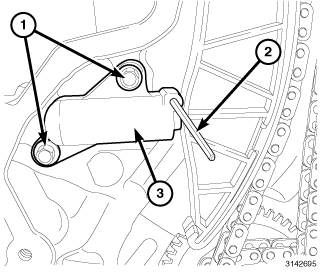

Fig 6: Left Timing Chain Tensioner, Pin & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the left timing chain tensioner (3). Tighten bolts (1) to 14 N.m (124 in. lbs.).
Remove the (special tool #VM.10359A, Pin, Tensioner) (2) from timing chain tensioner (3).

Fig 7: Camshaft Position Sensor (CMP) Reluctor Wheel, Left Camshaft Timing Chain Sprocket, Timing Chain & Bolt
Courtesy of CHRYSLER GROUP, LLC
Tighten the reluctor wheel (2) bolt (1) to 20 N.m (177 in. lbs.) plus an additional 60° turn.

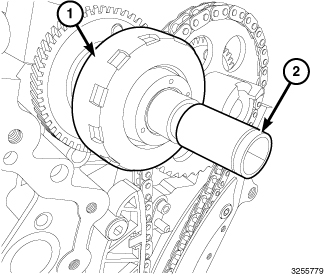

Fig 8: Oil Separator & Oil Separator Remover/Installer Tool
Courtesy of CHRYSLER GROUP, LLC
(1). Using the (special tool #VM.10344, Tool, Oil Separator Remover/Installer) (2), install the oil separator and tighten to 30 N.m (22 ft. lbs.).

Fig 9: Camshaft Timing Tool & Sprockets Holes - Left
Courtesy of CHRYSLER GROUP, LLC
Remove bolts and the (special tool #VM.10338-2, Timing Tool, Camshaft (Left)) (1).

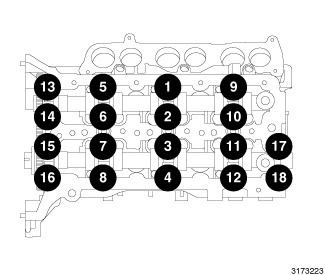

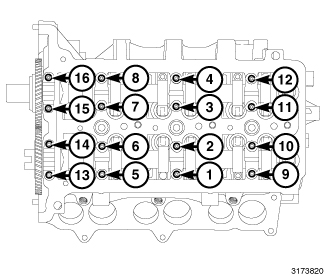

Fig 10: Camshaft Bearing Cap Tightening Sequence - Left
Courtesy of CHRYSLER GROUP, LLC
Install the left camshaft bearing caps 13 through 16 and tighten bolts to 11 N.m (97 in. lbs.).

Fig 11: High Pressure Pump Drive Gear, Right Timing Chain Sprocket, Timing Chain & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the right timing chain (4) and timing chain sprocket (3).
Install the fuel injection pump drive gear (2). Tighten bolt (1) finger tight.

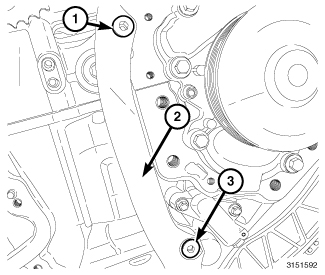

Fig 12: Right Inner Timing Chain Guide & Bolts
Courtesy of CHRYSLER GROUP, LLC
If removed install the right inner timing chain guide (2). Tighten bolts (1 and 3) to 30 N.m (22 ft. lbs.).

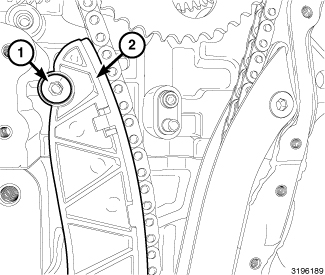

Fig 13: Right Outer Timing Chain Guide & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the right outer timing chain guide (2). Tighten bolt (1) to 30 N.m (22 ft. lbs.).

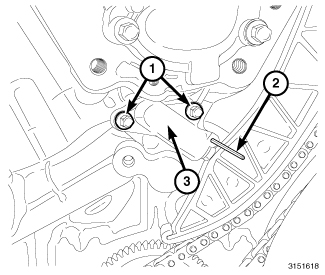

Fig 14: Pin, Right Timing Chain Tensioner & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the right timing chain tensioner (3). Tighten bolts (1) to 14 N.m (124 in. lbs.).
Remove (special tool #VM.10359A, Pin, Tensioner) (2) from timing chain tensioner (3).

Fig 15: High Pressure Pump Drive Gear, Right Timing Chain Sprocket, Timing Chain & Bolt
Courtesy of CHRYSLER GROUP, LLC
Tighten the fuel injection pump drive gear (2) bolt (1) to 20 N.m (177 in. lbs.) plus an additional 60° turn.

Fig 16: Camshaft Timing Tool & Sprockets Holes - Right
Courtesy of CHRYSLER GROUP, LLC
Remove the (special tool #VM.10338-1, Timing Tool, Camshaft (Right)) (1).

Fig 17: Camshaft Bearing Cap Tightening Sequence - Right
Courtesy of CHRYSLER GROUP, LLC
Install the right camshaft bearing caps 13 through 16 and tighten bolts to 11 N.m (97 in. lbs.).

Fig 18: Crankshaft Timing Tool
Courtesy of CHRYSLER GROUP, LLC
Remove the (special tool #VM.10339, Tool, Crankshaft Timing) (1).

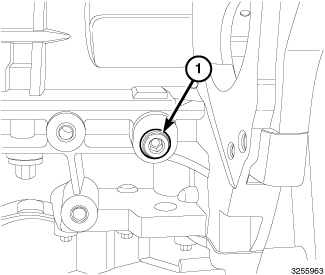

Fig 19: Engine Block Plug
Courtesy of CHRYSLER GROUP, LLC
Install engine block plug (1). Tighten 30 N.m (22 ft. lbs.).
Install the lower timing cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION .

Fig 20: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Connect negative battery cable.
Start engine and inspect for leaks. Care must be taken to observe the fuel system warnings.
Install engine cover (1).
