Sensor, Oil Pressure: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Cover
GC0146436Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the engine cover (1).

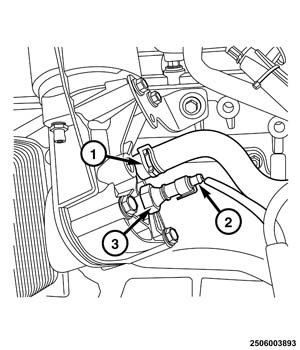

    Fig 2: Engine Oil Pressure Sensor
    GC0157454Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect engine oil pressure sensor harness connector (2).
  4. Remove engine oil pressure sensor (3).
