Lower Oil Pan

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the front suspension skid plate. Refer to PLATE, SKID, FRONT SUSPENSION, REMOVAL .
  3. Drain the engine oil. Install and tighten drain plug to 45 N.m (33 ft. lbs.).

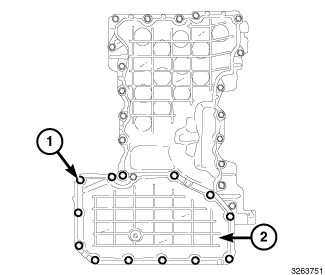

    Fig 1: Lower Oil Pan & Bolts
    GC0146701Courtesy of CHRYSLER GROUP, LLC
  4. Remove bolts (1) and the lower oil pan (2).
