Lower Oil Pan
WARNING: This page is about a different variant/trim than selected.
- Clean and gasket sealing surfaces. Refer to ENGINE GASKET SURFACE PREPARATION
.CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.
CAUTION:Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.
NOTE:Sealing surfaces must be free of a gasket material and oil residue. Clean the oil pan sealing surfaces with isopropyl alcohol in preparation for sealant application.

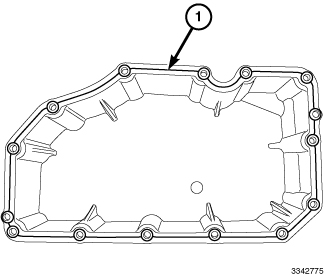

- Apply a 3 mm wide bead of Mopar® Threebond Engine RTV Sealant to the lower oil pan as shown in illustration (1).
- Position the lower oil pan and install the bolts finger tight.

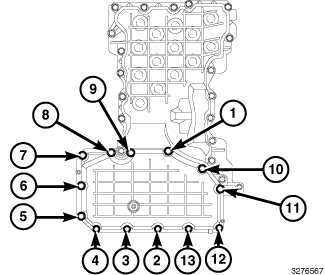

- Using the tightening sequence shown in illustration, tighten the oil pan bolts to 15 N.m (133 in. lbs.).
- Loosen each bolt one at a time 90 degrees, then using the tightening sequence shown in illustration tighten bolts to 15 N.m (133 in. lbs.).
- Install the front suspension skid plate. Refer to PLATE, SKID, FRONT SUSPENSION, INSTALLATION .
- Lower the vehicle.
- Fill the engine with recommended engine oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
