Jet, Piston Oil Cooler: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Use caution when removing and installing oil jets. Damage to oil jet nozzle could cause severe engine damage.

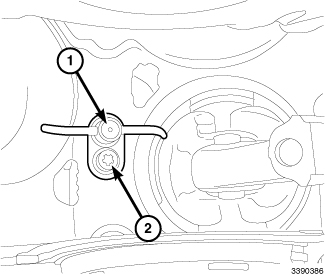

Fig 1: Oil Jet & Retaining Bolt
GC0146759Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect negative battery cable.
  2. Remove the crankshaft. Refer to CRANKSHAFT, REMOVAL  .
  3. Remove bolt (2) and oil jet (1) from engine block.
