Bearing(S), Connecting Rod: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect negative battery cable.
  2. Remove the engine from vehicle. Refer to REMOVAL  .
  3. Remove the oil pump pickup tube. Refer to PICK-UP, OIL PUMP, REMOVAL  .

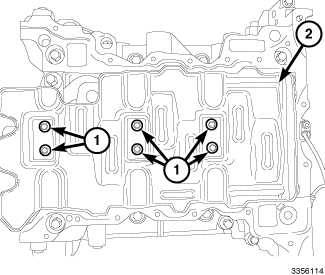

    Fig 1: Windage Tray & Bolts
    GC0146605Courtesy of CHRYSLER GROUP, LLC
  4. Remove bolts (1) and the windage tray (2).
    Fig 2: Connecting Rod, Bearings & Bolts
    GC0146733Courtesy of CHRYSLER GROUP, LLC
  5. Remove the connecting rod bearing caps one at a time and discard bolts (2).
  6. Carefully remove the upper half and lower bearing half (3) from the connecting rod.
