Right Cylinder Head

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL  .
  2. Remove the glow plugs.
  3. Remove the right side intake and exhaust camshaft shafts. Refer to CAMSHAFT, ENGINE, REMOVAL  .
  4. Remove the followers and tappets and note their original position.
  5. Remove the water pump housing assembly. Refer to PUMP, WATER, REMOVAL .

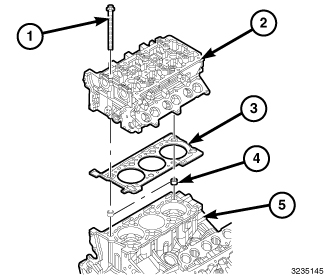

    Fig 1: Cylinder Head, Head Gasket, Engine Block & Bolts
    GC0146684Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do Not store the cylinder head on the sealing surface.

  6. Remove bolts (1) and the cylinder head (2) from the engine block (5) and discard head bolts.
  7. Remove and the head gasket (3).
