Left Cylinder Head

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL  .
  2. Remove the glow plugs.
  3. Remove the left side intake and exhaust camshafts. Refer to CAMSHAFT, ENGINE, REMOVAL  .
  4. Remove the followers and tappets and note their original position.
  5. Remove the water pump housing assembly. Refer to PUMP, WATER, REMOVAL .

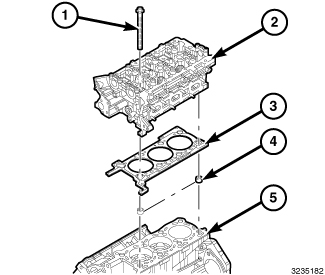

    Fig 1: Cylinder Head, Head Gasket, Engine Block & Bolts
    GC0146685Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Do Not store the cylinder head on the sealing surface.

  6. Remove bolts (1) and the cylinder head (2) from the engine block (5) and discard head bolts.
  7. Remove and discard the head gasket (3).
