Right Camshafts

WARNING: This page is about a different variant/trim than selected.

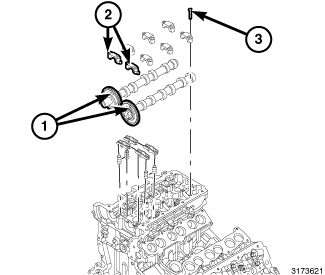

Fig 1: Right Side Intake & Exhaust Camshaft, Camshaft Bearing Caps & Bolts

Courtesy of CHRYSLER GROUP, LLC

Clean all gasket and mating surfaces. Refer to ENGINE GASKET SURFACE PREPARATION .
Lubricate camshafts with Mopar® Engine Oil Supplement, or equivalent. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
Carefully install camshafts (1) onto cylinder head journals.

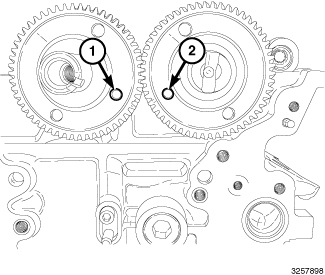

Fig 2: Exhaust Camshaft Gear Timing Mark & Intake Camshaft Timing Gear Mark
Courtesy of CHRYSLER GROUP, LLC
Set the exhaust camshaft gear timing mark (1) at the four O'clock position and the intake camshaft timing gear mark (2) to the seven O'clock position.

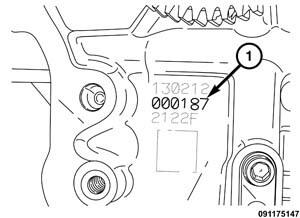

Fig 3: Identification Number On Cylinder Head
Courtesy of CHRYSLER GROUP, LLC
Verify the Identification No. (1) on front of cylinder head.

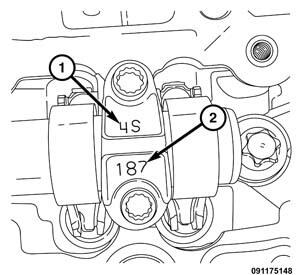

Fig 4: Bearing Cap Identification Marks
Courtesy of CHRYSLER GROUP, LLC

NOTE:
When installing the bearing caps, be sure to install the "A" on the intake side and the "S" on the exhaust side in the rightful order.
The identification No. (2) on the camshaft bearing cap should match the cylinder head number.

Fig 5: Camshaft Bearing Cap Tightening Sequence - Right
Courtesy of CHRYSLER GROUP, LLC
Install the camshaft bearing caps 1 through 12, in the rightful order and tighten each retaining bolt finger tight.
Check the camshaft for proper timing. Refer to VALVE TIMING - STANDARD PROCEDURE .

Fig 6: Camshaft Bearing Cap Tightening Sequence - Right
Courtesy of CHRYSLER GROUP, LLC
Using the tightening sequence shown in illustration, tighten bolts to 11 N.m (97 in. lbs.).
Install the right timing chain sprocket. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION .
Connect the negative battery cable.
Start engine, allow to warm, turn engine off and inspect for leaks.
