Intake Air Tube

WARNING: This page is about a different variant/trim than selected.

Fig 1: Engine Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Remove the engine cover (1).

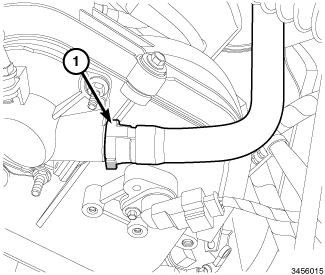

Fig 2: CCV Hose
Courtesy of CHRYSLER GROUP, LLC
Remove the CCV hose (1) from upper timing cover. (During removal of the CCV hose do NOT disconnect CCV hose at the Air Tube.)

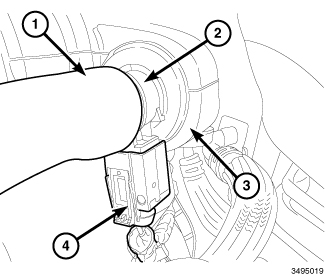

Fig 3: Crankcase Vent Heater, Air Inlet Hose, Breather Hose & Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the CCV hose heater harness connector (4).
Loosen clamp and remove intake air tube from air cleaner body.

Fig 4: Cowl Extension Silencer, Side Extensions & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the cowl extension silencer (1) and the side extensions (2, 5). Refer to SILENCER, COWL EXTENSION, REMOVAL .
Loosen clamp and remove intake air tube from turbocharger.
