Air Cleaner: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

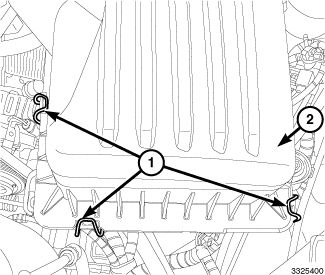

Fig 1: Air Cleaner Housing Cover & Clips

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Housing removal is not necessary for element (filter) replacement.

Release the three spring clips (1) from front of housing cover (2) and remove the cover.

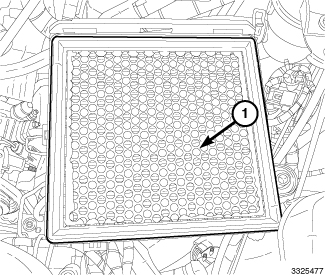

Fig 2: Air Cleaner Element
Courtesy of CHRYSLER GROUP, LLC
Remove air cleaner element (1) from housing.
