Right Side

WARNING: This page is about a different variant/trim than selected.

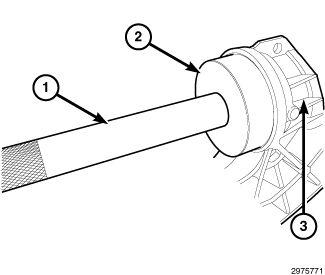

Fig 1: Driver Handle & Installer
GC0146340Courtesy of CHRYSLER GROUP, LLC
  1. Using Driver Handle (special tool #C-4171, Driver Handle, Universal) (1), Drive Handle Extention (special tool #C-4171-2, Extension, Drive Handle) and Installer (special tool #10221, Installer, Seal) (2), and install NEW  axle shaft seal. Lubricate the inside diameter with Mopar® Gear and Axle Lubricant to protect seal during halfshaft installation.
  2. Install halfshaft. Refer to INSTALLATION .
