Boot, Drive Shaft, Outer: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER GROUP, LLC
NOTE:
CV joint is serviced with the shaft, the boot can be serviced separately
- Remove inner CV boot and joint.

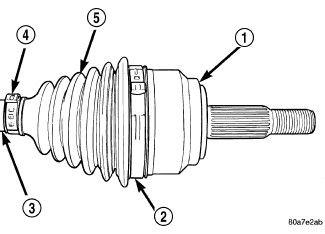

- Cut outer CV boot (5) clamps (2, 4).
- Cut boot off CV housing (1) and shaft (3).
