Lamp, Tail Stop Turn: Removal: Lamp: Outer

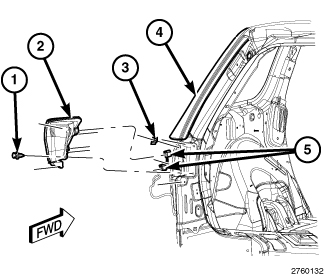

Fig 1: Outer Rear Tail Lamp Housing, Grommets, Push-Pins & Connectors

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Locate and remove the plastic push-pin fastener that secures the bracket on the bottom of the inboard side of the outer rear tail lamp housing (2) to the upper flange of the rear fascia.
Open the liftgate to access and remove the two plastic push-pin fasteners (1) that secure the inboard side of the lamp to the side jamb of the liftgate opening.
Pull the outboard side of the lamp rearward far enough to disengage the two ball studs on the back of the lamp housing from the plastic grommets (3) in the lamp opening of the body sheet metal (4).
Pull the lamp away from the vehicle far enough to access and disconnect the two body wire harness connectors (5) from the two bulb socket connector receptacles on the back of the lamp housing.
Remove the lamp from the vehicle.
