Lamp, Fog, Front: Removal: Lamp: SRT

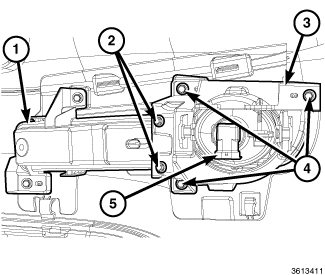

Fig 1: Front Fog Lamp Bracket, Front Fog Lamp Bulb Connector Receptacle, Three Screws, Two Screws & Accent Lamp Housing
GC0153856Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the fasteners securing the lower portion of the front wheel house splash shield to the front fascia and fold the splash shield back away far enough to access the front fog lamp bracket (3). Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .
  3. Disconnect the headlamp and dash wire harness connector from the front fog lamp bulb connector receptacle (5).
  4. Remove the three screws (4) that secure the front fog lamp bracket to the back of the front fascia.
  5. Remove the two screws (2) that secure the front fog lamp bracket to the outboard end of the accent lamp housing (1).
  6. Remove the front fog lamp and bracket from the accent lamp and the back of the front fascia as a unit.
