Lamp, Fog, Front: Removal: Bulb: SRT

CAUTION:

Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

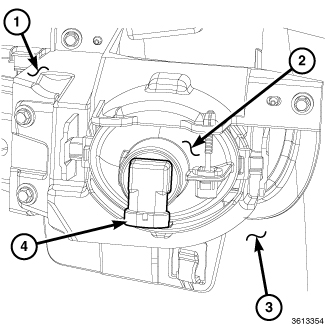

Fig 1: Front Fog Lamp & Front Fog Lamp Bulb Connector Receptacle

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Reach through the outboard opening in the front of the front wheel house splash shield to access the back of the front fog lamp (2) on the outboard end of the front accent lamp.
Disconnect the headlamp and dash wire harness connector from the front fog lamp bulb connector receptacle (4).
Firmly grasp the fog lamp bulb on the back of the front fog lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
Pull the bulb straight out from the keyed opening in the housing.
