Latch, Flip-Up Glass: Removal: Removal

Fig 1: Trim Panel & Retaining Clips

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before disconnecting battery, check to see if the rear glass is released from the latch.

Disconnect and isolate the battery negative cable.
Remove the trim panel from the liftgate (1). Refer to PANEL, TRIM, REMOVAL .

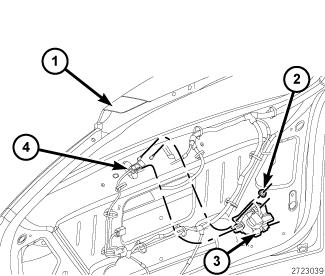

Fig 2: `
Courtesy of CHRYSLER GROUP, LLC
Using a grease pencil or equivalent, mark the position of the latch to aid installation.
Disconnect the electrical connectors (4) from the liftgate glass latch (3).
Remove the two nuts (2) that secure the latch (3) to the inside of the liftgate.
Remove the liftgate glass latch (3) from the vehicle.
