Sensor-Crankshaft Position (3.6L) (D1511A)

Harness-Family: Engine

Color: BROWN

Gender: FEMALE

Part Number: 2098541-5

Part Description: Not Available

Connector No: D1511A

Option: 3.6L

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Crankshaft Position Connector End View (3.6L)

Courtesy of CHRYSLER

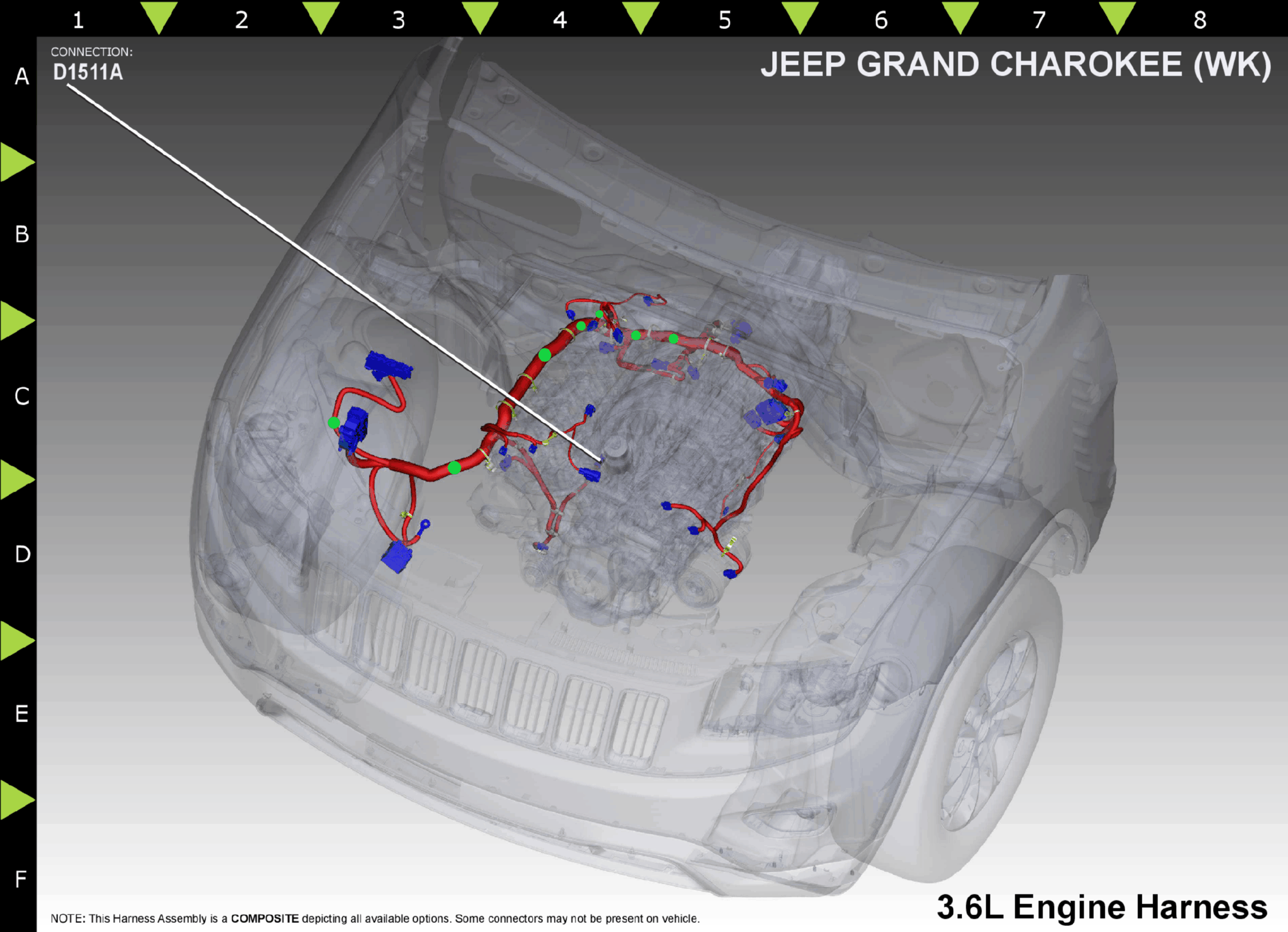

Fig 2: Sensor-Crankshaft Position Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K925

DB/GY

CKP GROUND

N/A

K24

BR/LB

CKP SIGNAL

N/A

F855

PK/YL

5 VOLT SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
