Sensor-Camshaft Position 2 (3.6L) (D1648A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 1-1456426-5

Part Description: Not Available

Connector No: D1648A

Option: 3.6L

Repair Kit Part Number: 68148103AA

Cavity Count: 4

Fig 1: Sensor-Camshaft Position 2 Connector End View (3.6L)

Courtesy of CHRYSLER

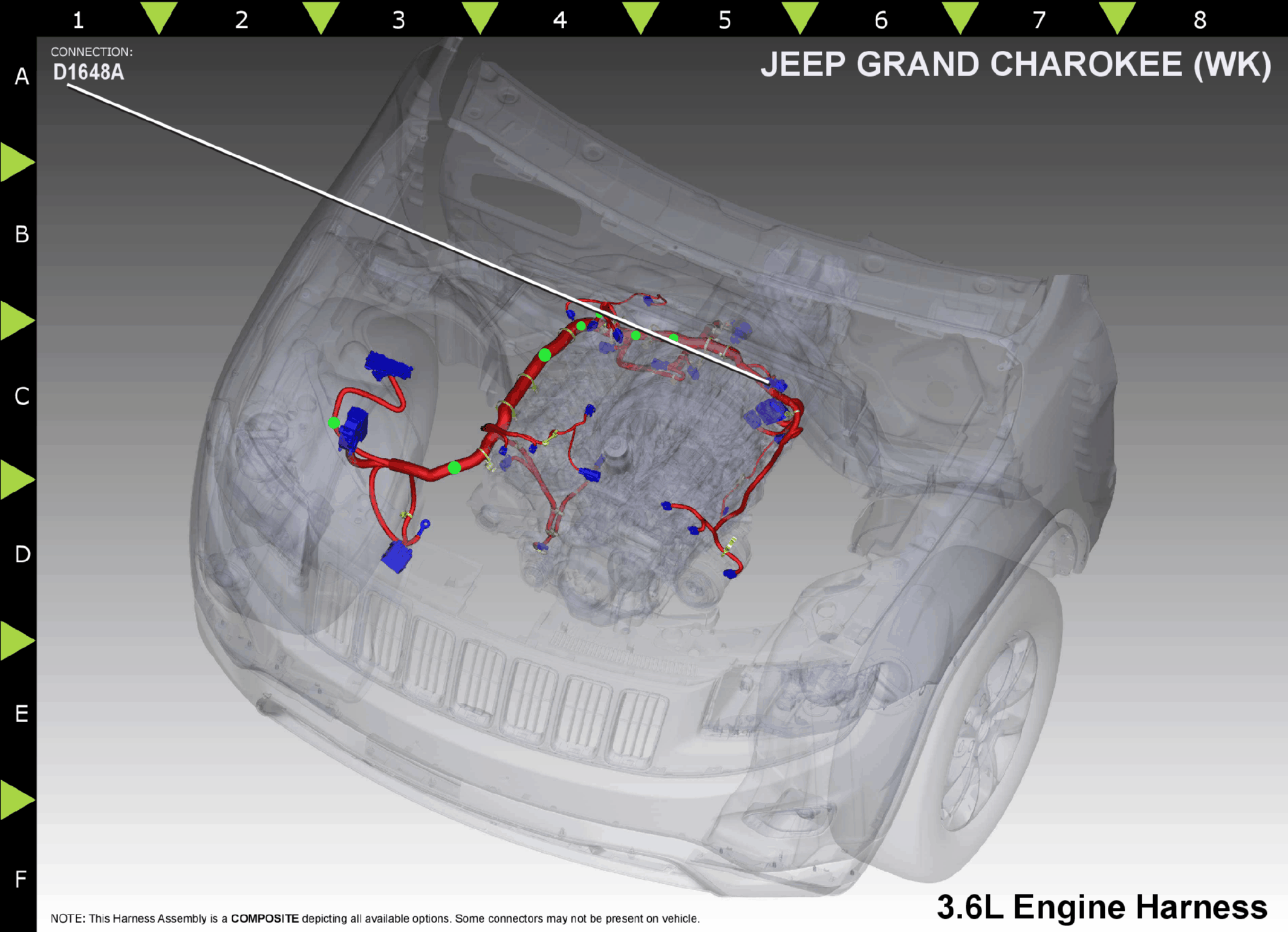

Fig 2: Sensor-Camshaft Position 2 Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K444

DB/TN

CMP SIGNAL 3

N/A

F856

YL/PK

5 VOLT SUPPLY

N/A

K900

DB/DG

SENSOR GROUND

N/A

K445

DB/DG

CMP SIGNAL 4

N/A

⁽¹⁾	Pins not listed are not used for this connector
