Sensor-Camshaft Position 1 (5.7L/6.4L) (D1510A)

Harness-Family: Engine

Color: ~~

Gender: MALE

Part Number: F519600

Part Description: Not Available

Connector No: D1510A

Option: 5.7L/6.4L

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Camshaft Position 1 Connector End View (5.7L/6.4L)

Courtesy of CHRYSLER

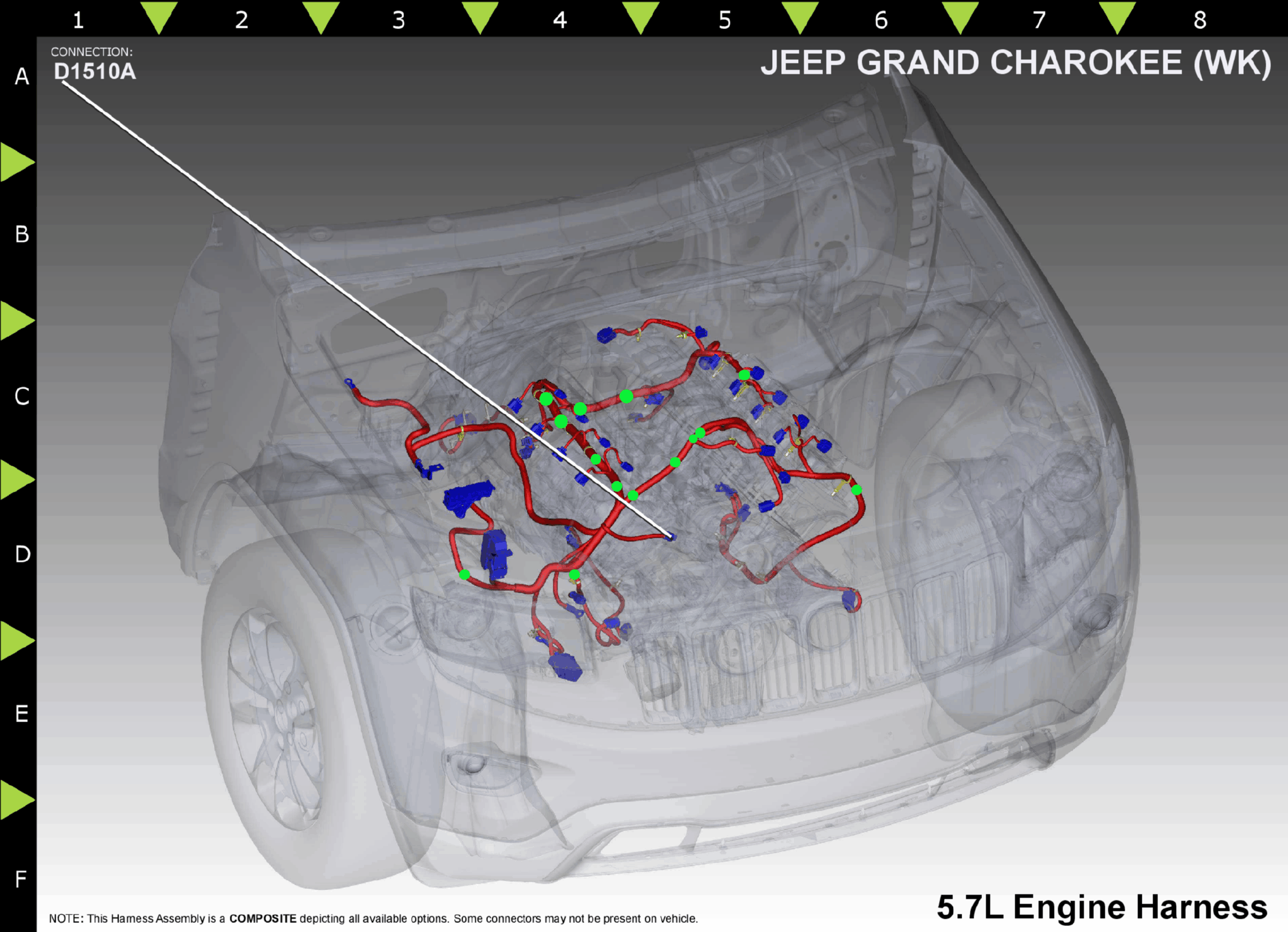

Fig 2: Sensor-Camshaft Position 1 Component Location (5.7L/6.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F856

YL/PK

5 VOLT SUPPLY

N/A

K900

DB/DG

SENSOR GROUND

N/A

K44

DB/GY

CMP SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
