Sensor-Camshaft Position 1 (3.0L) (D1510A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 4510811

Part Description: Not Available

Connector No: D1510A

Option: 3.0L

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Sensor-Camshaft Position 1 Connector End View (3.0L)

Courtesy of CHRYSLER

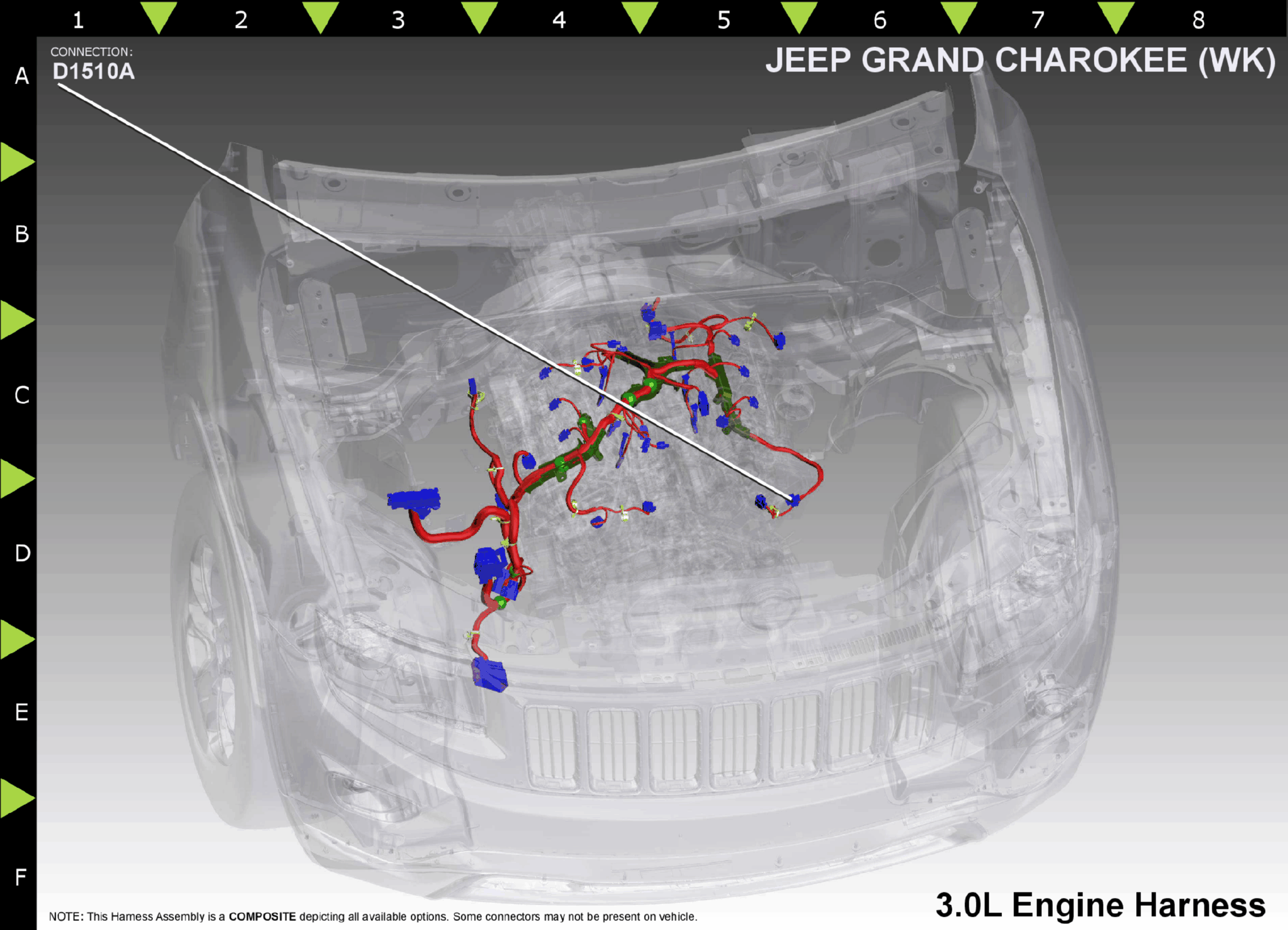

Fig 2: Sensor-Camshaft Position 1 Component Location (3.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K944

BK/GY

CMP GROUND

N/A

K44

DB/GY

CMP SIGNAL

N/A

K844

DB/YL

CMP 5 VOLT SUPPLY

N/A

⁽¹⁾	Pins not listed are not used for this connector
