Radio C7 (LHD) (D2784G)

Harness-Family: IP

Color: VIOLET

Gender: MALE

Part Number: 3FA1-NDSJ-C04W0

Part Description: Not Available

Connector No: D2784G

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Radio C7 Connector End View (LHD)

GCWD1006534

Courtesy of CHRYSLER

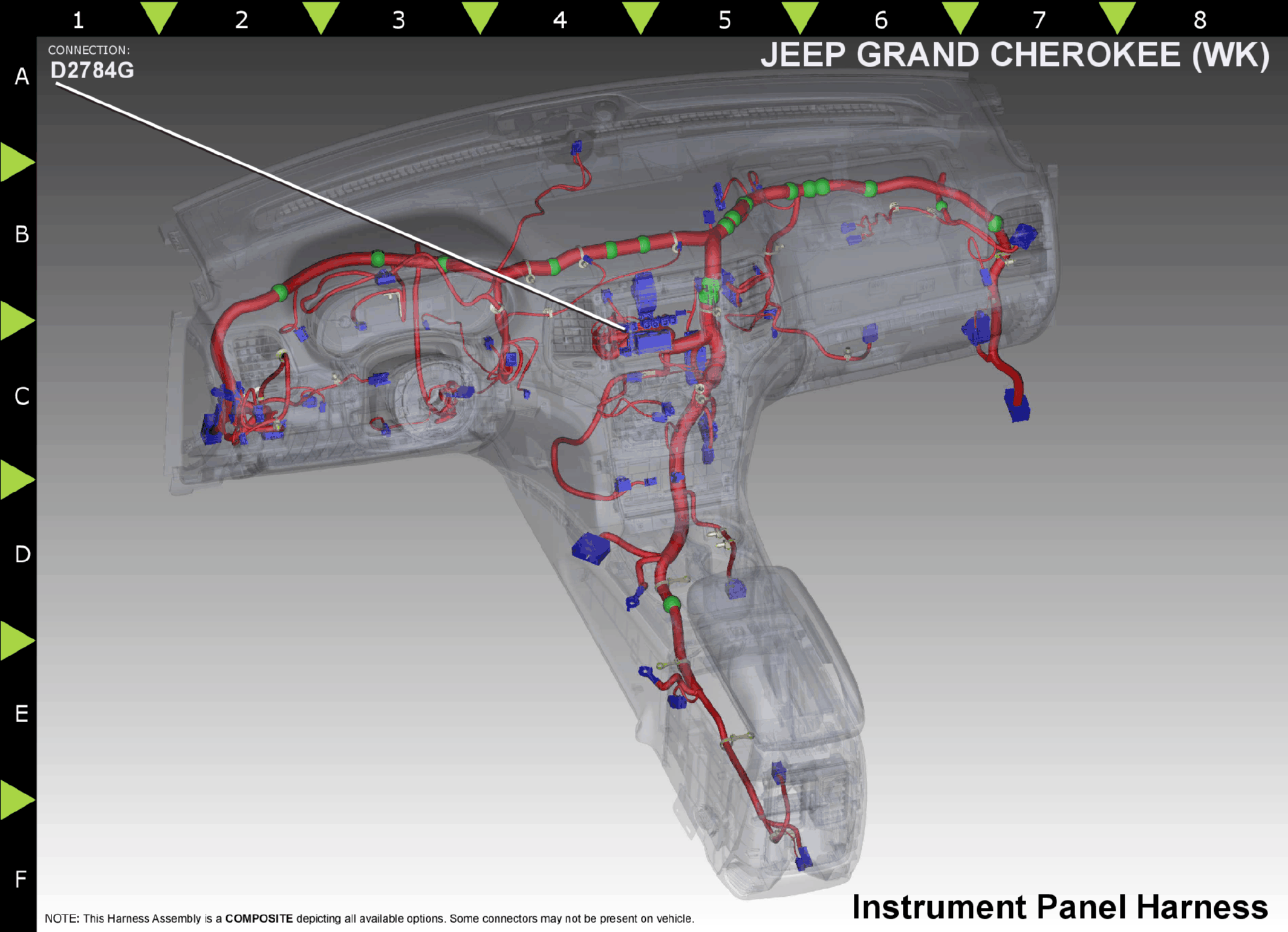

Fig 2: Radio C7 Component Location (LHD)

GCWD1003772

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D7

BK

16

CELLULAR ANTENNA SIGNAL

N/A

2

D107

BK

~~

CELLULAR SHIELD

N/A

⁽¹⁾	Pins not listed are not used for this connector
