Pump-Vacuum (3.6L) (D6709A)

Harness-Family: Engine

Color: DARK GRAY

Gender: MALE

Part Number: 7282-5575-10

Part Description: 2.8 INSULATOR

Connector No: D6709A

Option: 3.6L

Repair Kit Part Number: 68148106AA

Cavity Count: 2

Fig 1: Pump-Vacuum Connector End View (3.6L)

GCWD1006564

Courtesy of CHRYSLER

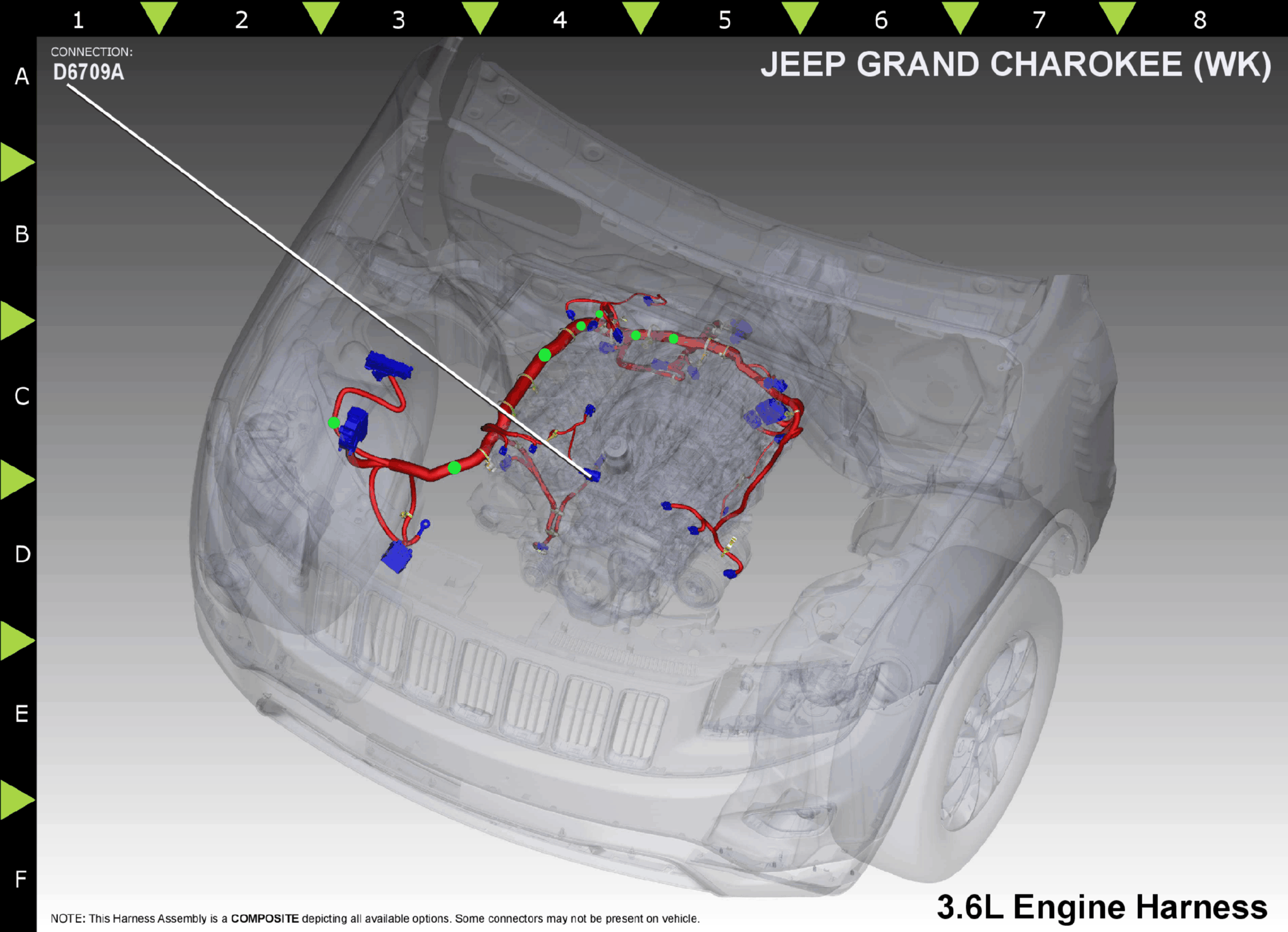

Fig 2: Pump-Vacuum Component Location (3.6L)

GCWD1005362

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T108

DG/VT

18

VACUUM PUMP RELAY OUTPUT

N/A

2

Z906

BK

18

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
