Motor-Sunroof (Standard) (D3036A)

Harness-Family: Sunroof

Color: ~~

Gender: MALE

Part Number: 15493284

Part Description: INNER CONNECTOR BLACK

Connector No: D3036A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 10

Fig 1: Motor-Sunroof Connector End View (Standard)

Courtesy of CHRYSLER

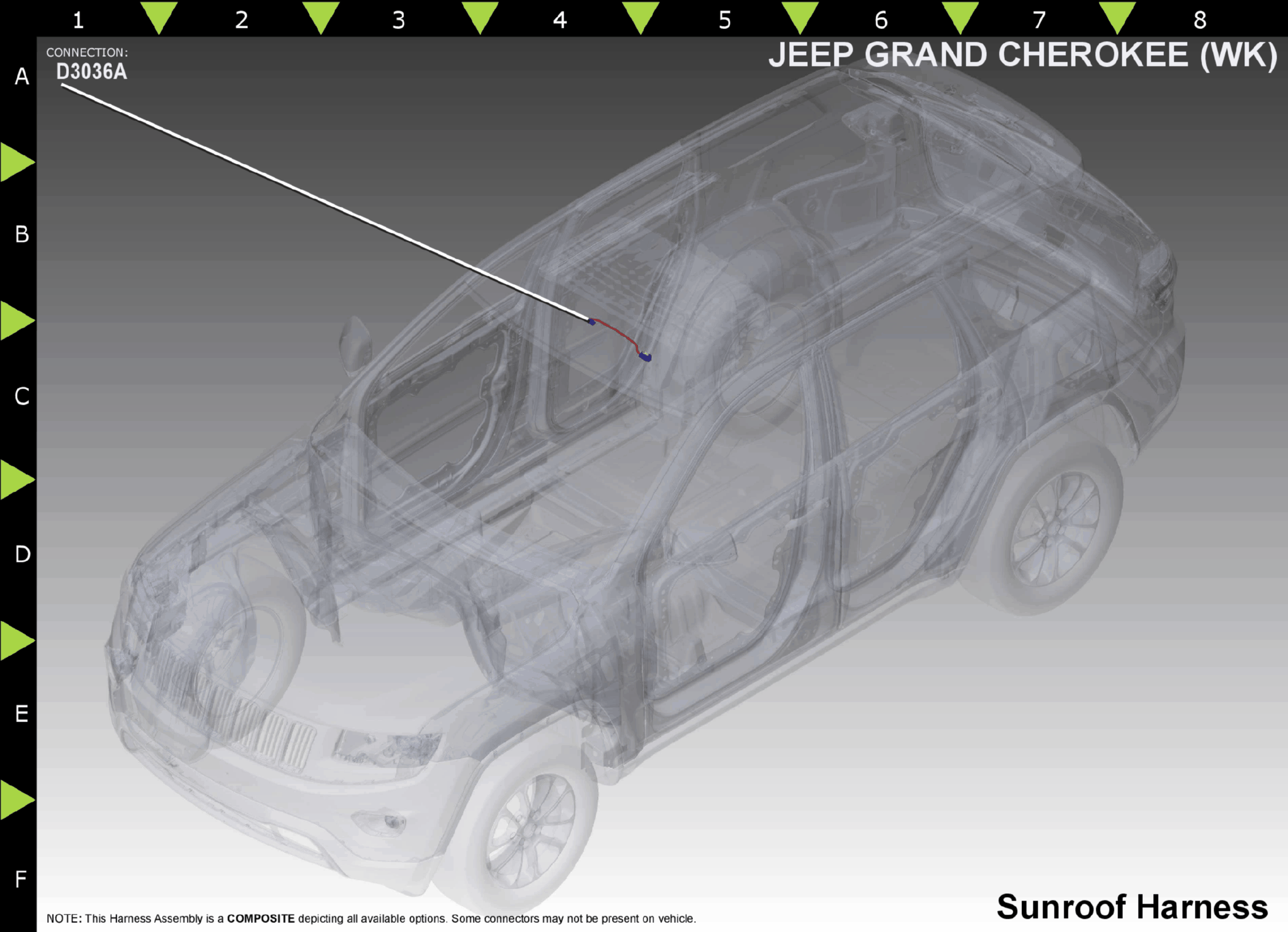

Fig 2: Motor-Sunroof Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

OR/TN

SUNROOF OPEN SWITCH SENSE

N/A

OR/LB

SUNROOF CLOSE SWITCH SENSE

N/A

OR/YL

SUNROOF VENT SWITCH SENSE

N/A

OR/LG

SUNROOF SWITCH SUPPLY

N/A

F982

PK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-ACC)

N/A

Z911

GROUND

N/A

A940

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
