Motor-Sunroof (Dual) (D3036A)

Harness-Family: Sunroof

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 7283-8398-40

Part Description: HYBRID YESC CONNECTOR SUBASSY

Connector No: D3036A

Option: DUAL

Repair Kit Part Number: Not Available

Cavity Count: 14

Fig 1: Motor-Sunroof Connector End View (Dual)

GCWD1006557

Courtesy of CHRYSLER

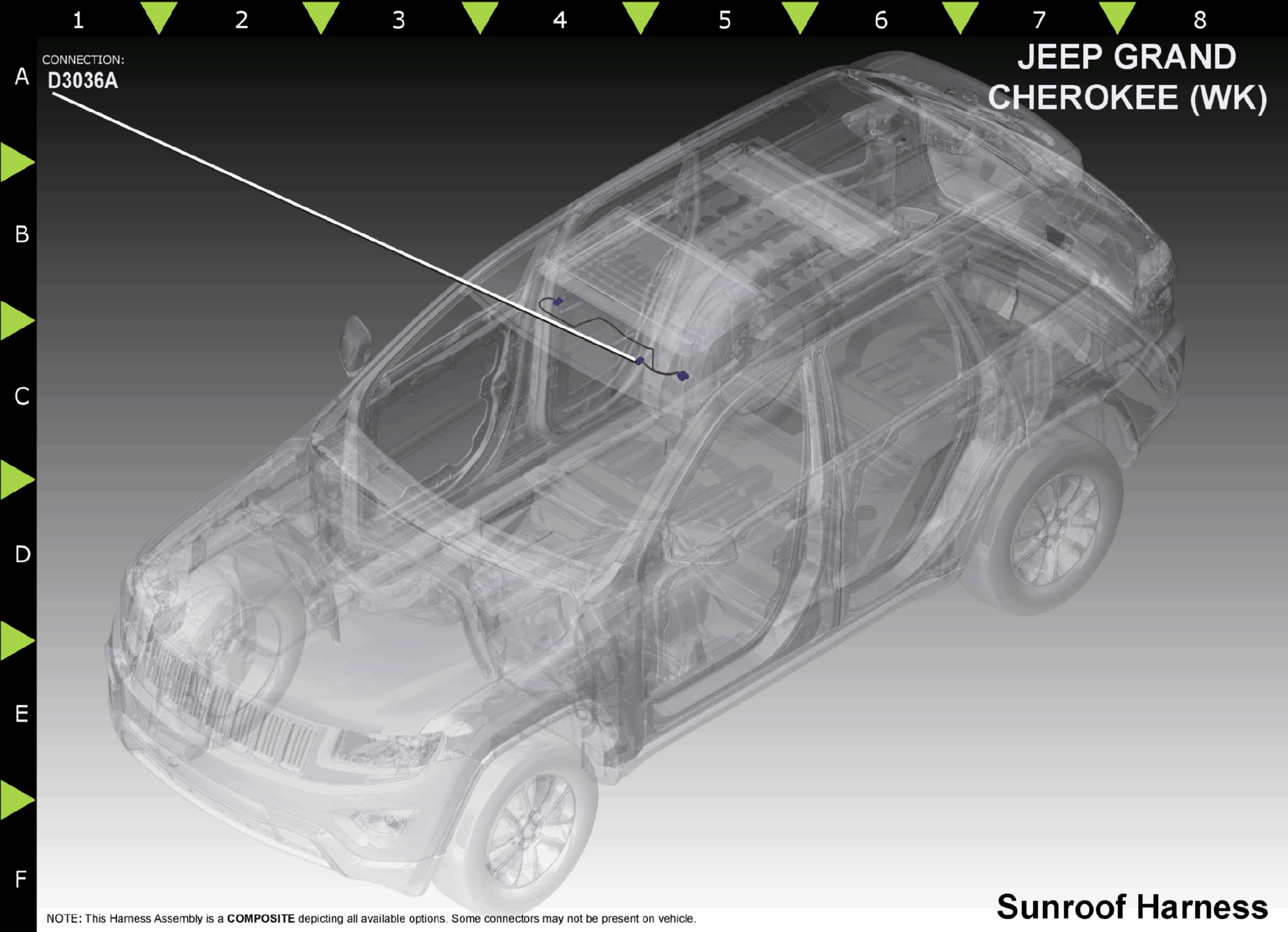

Fig 2: Motor-Sunroof Component Location (Dual)

GCWD1001931

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A906

RD

2.0

FUSED B(+)

N/A

4

Z923

BK

2.0

GROUND

N/A

4

Z911

BK

14

GROUND

N/A

5

Q3

OR/TN

0.35

SUNROOF OPEN SWITCH SENSE

N/A

6

Q5

OR/LB

0.35

SUNROOF CLOSE SWITCH SENSE

N/A

8

Q6

OR/LG

0.35

SUNROOF SWITCH SUPPLY

N/A

11

D270

OR/BK

0.35

SUNROOF DIAGNOSTIC

N/A

13

Q4

OR/YL

0.35

SUNROOF VENT SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
