Motor-Steering Tilt (D3051A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 1326490-3

Part Description: 4P RECEPTACLE HOUSING - 2X JPT + 2X MT3

Connector No: D3051A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Motor-Steering Tilt Connector End View

Courtesy of CHRYSLER

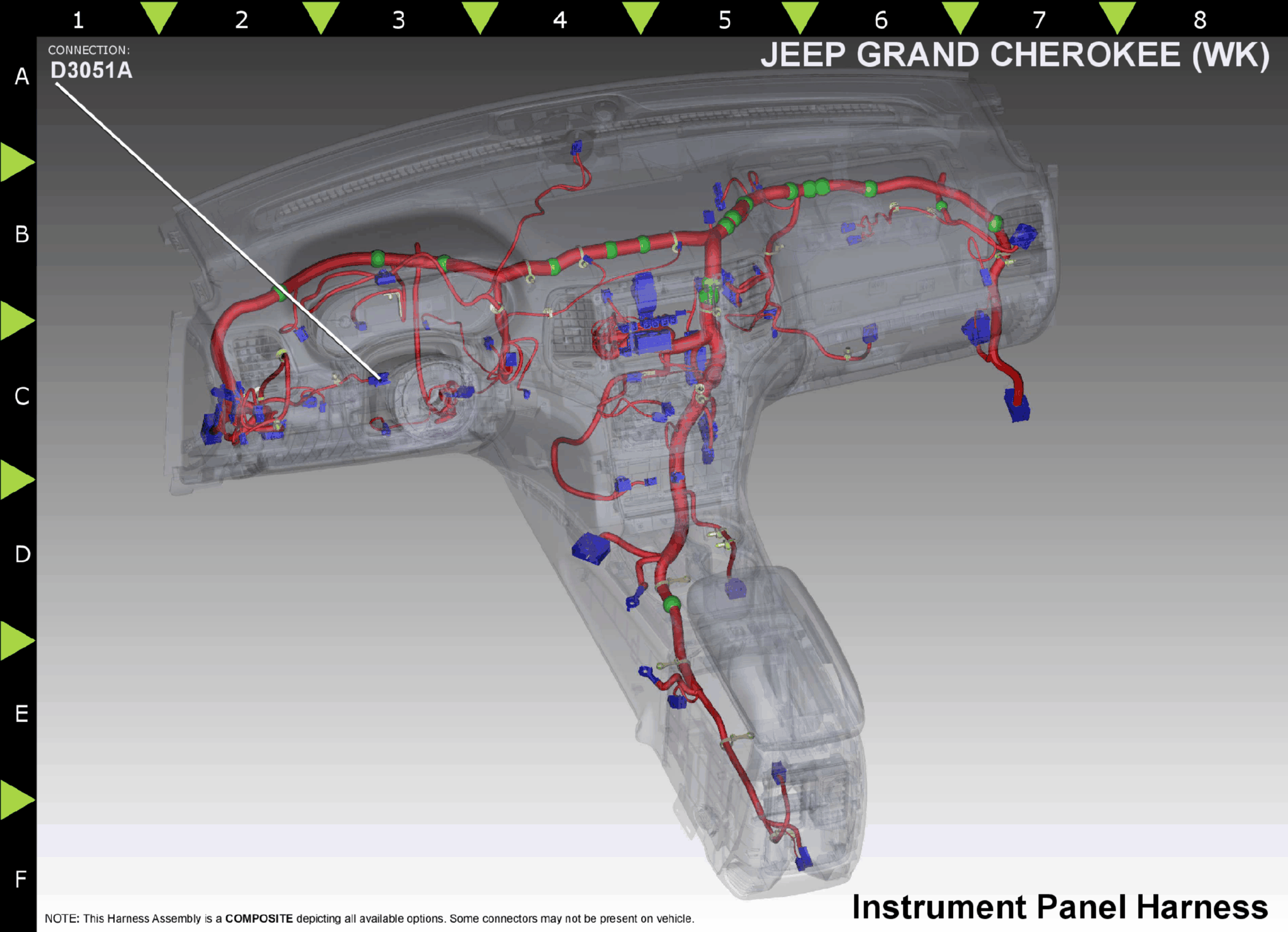

Fig 2: Motor-Steering Tilt Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P953

DG/TN

CNV - STEERING MTR UP/DN RTN

N/A

P153

TN/DG

CNV-STEERING MTR UP/DN

N/A

G914

VT/GY

CNV - MEM ADJ PEDAL SNSR RTN

N/A

P151

TN/OR

CNV - STEERING HALL SNSR PWR UP/DN

N/A

⁽¹⁾	Pins not listed are not used for this connector
