Latch-Door-Left Rear C1 (D6617A)

Harness-Family: Door_Left_Rear

Color: BLACK

Gender: FEMALE

Part Number: F881100

Part Description: 1.2MM GLOBAL DOOR LATCH CONN W/O CPA

Connector No: D6617A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Latch-Door-Left Rear C1 Connector End View

Courtesy of CHRYSLER

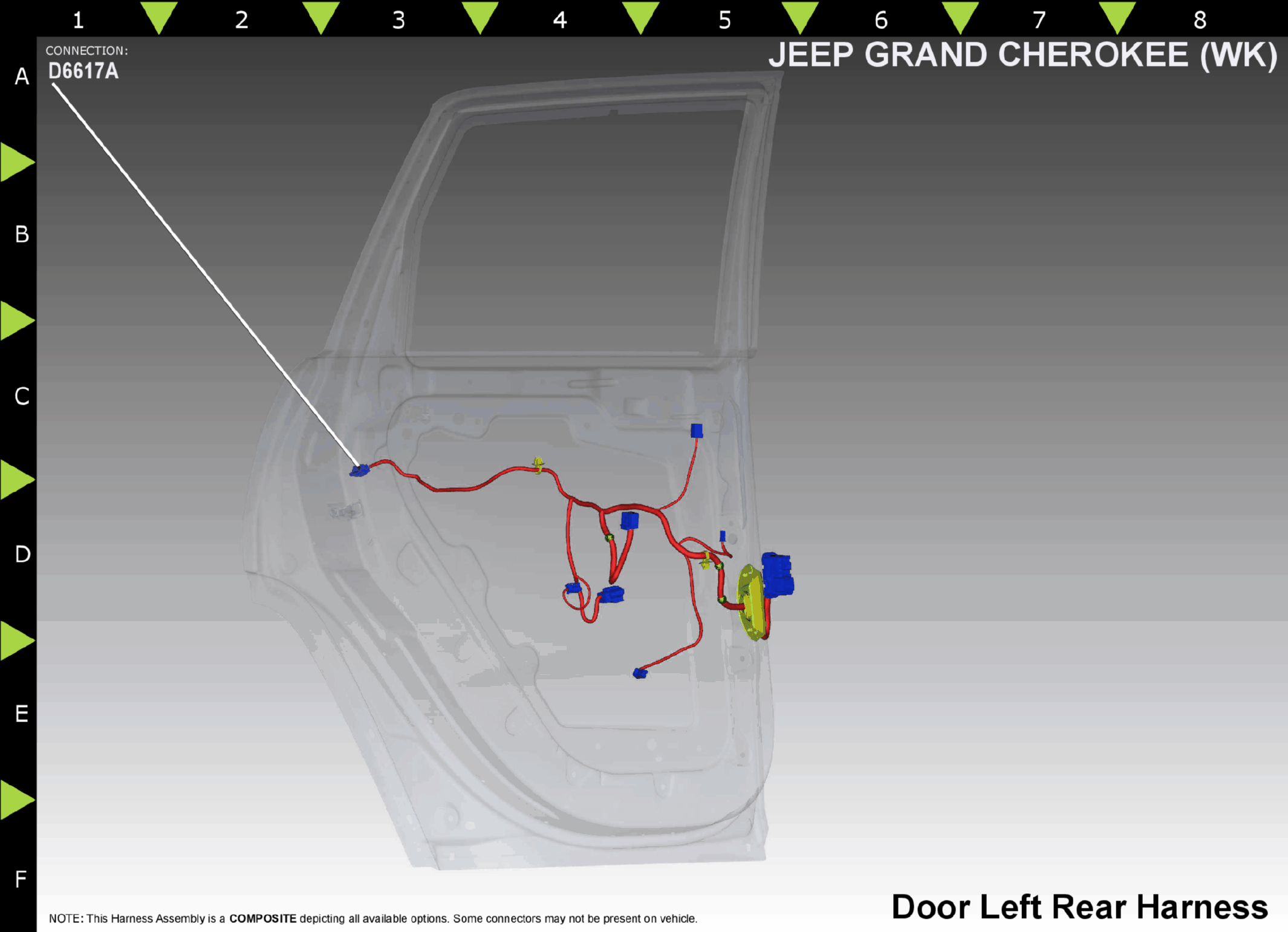

Fig 2: Latch-Door-Left Rear C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P292

VT/LG

PASSENGER DOORS UNLOCK RELAY CONTROL

N/A

P777

LG/DG

DOOR LOCK RELAY CONTROL

N/A

P372

TN/OR

DOOR LOCK SW RTN PASS

N/A

P371

TN/BR

DOOR LOCK SW RTN DRIV

N/A

G77

VT/GY

LEFT REAR DOOR AJAR SWITCH SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
