Lamp-Assembly-Right Front C2 (AHLM, Hid) (D6606B)

Harness-Family: Front_End_Module

Color: ~~

Gender: MALE

Part Number: ZFJ-00703-UA

Part Description: Not Available

Connector No: D6606B

Option: ~~

Repair Kit Part Number: 68148102AA

Cavity Count: 3

Fig 1: Lamp-Assembly-Right Front C2 (ahlm, hid) Connector End View

Courtesy of CHRYSLER

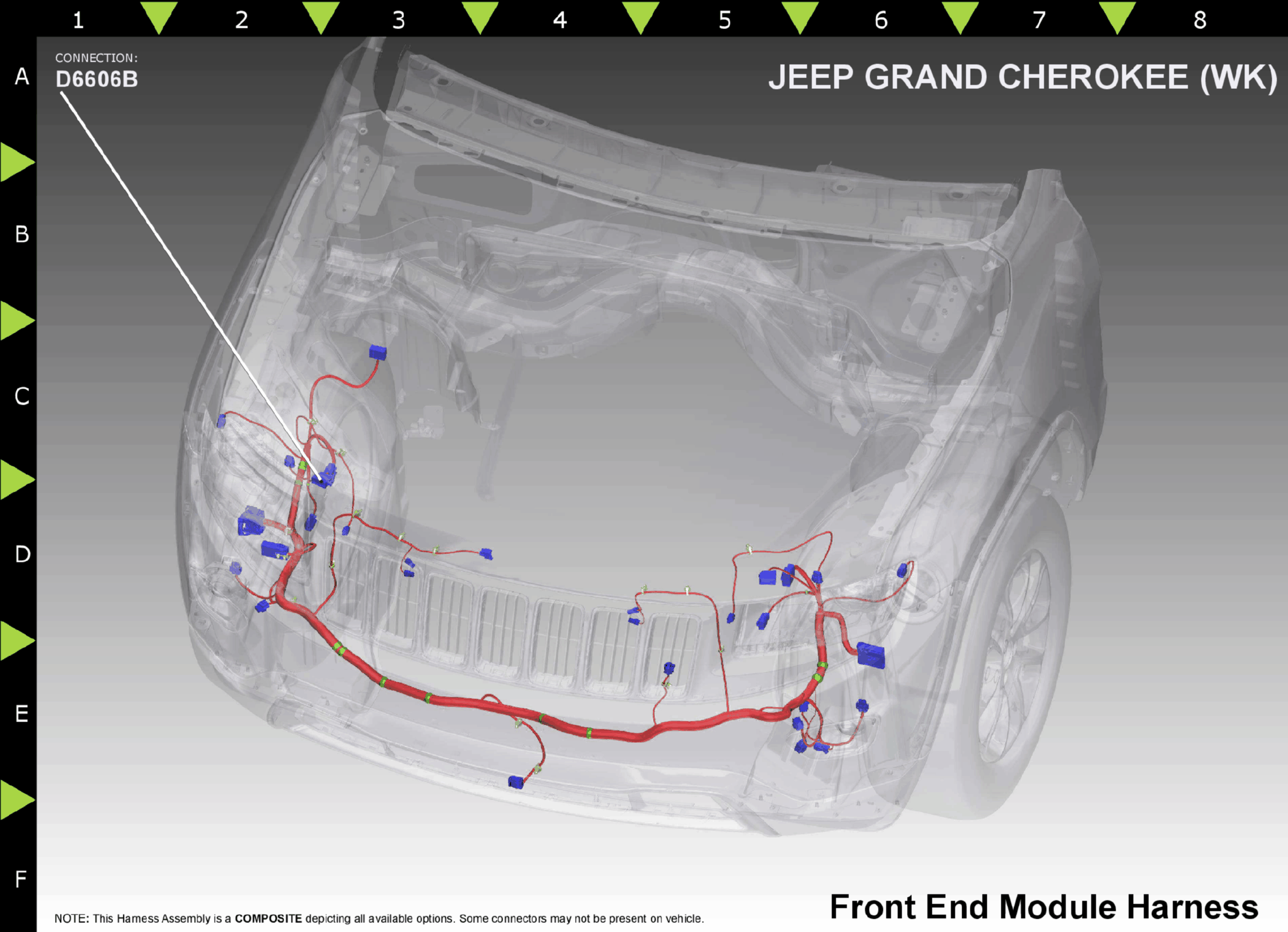

Fig 2: Lamp-Assembly-Right Front C2 (ahlm, hid) Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z901

GROUND

N/A

L78

RIGHT FRONT PARK LAMP DRIVER

N/A

L60

WT/TN

RIGHT FRONT TURN LAMP DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
