Horn 2 C2 (D5906B)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 520895-1

Part Description: INSL-POS LKNG 1/4 (FEM)

Connector No: D5906B

Option: ~~

Repair Kit Part Number: 68018942AA

Cavity Count: 1

Fig 1: Horn 2 C2 Connector End View

GCWD1006399

Courtesy of CHRYSLER

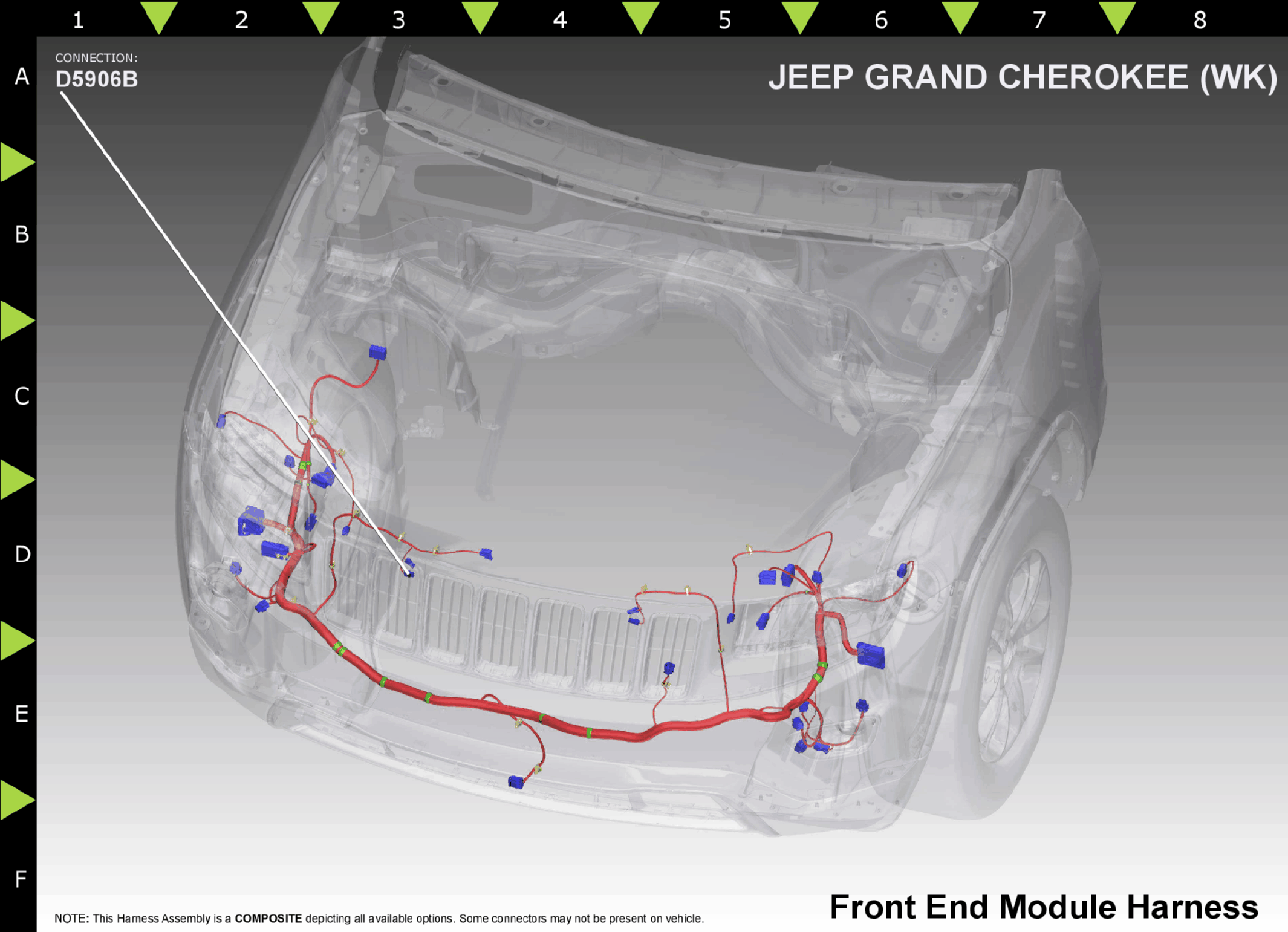

Fig 2: Horn 2 C2 Component Location

GCWD1001896

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z901

BK

18

GROUND

N/A

1

Z909

BK

18

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
