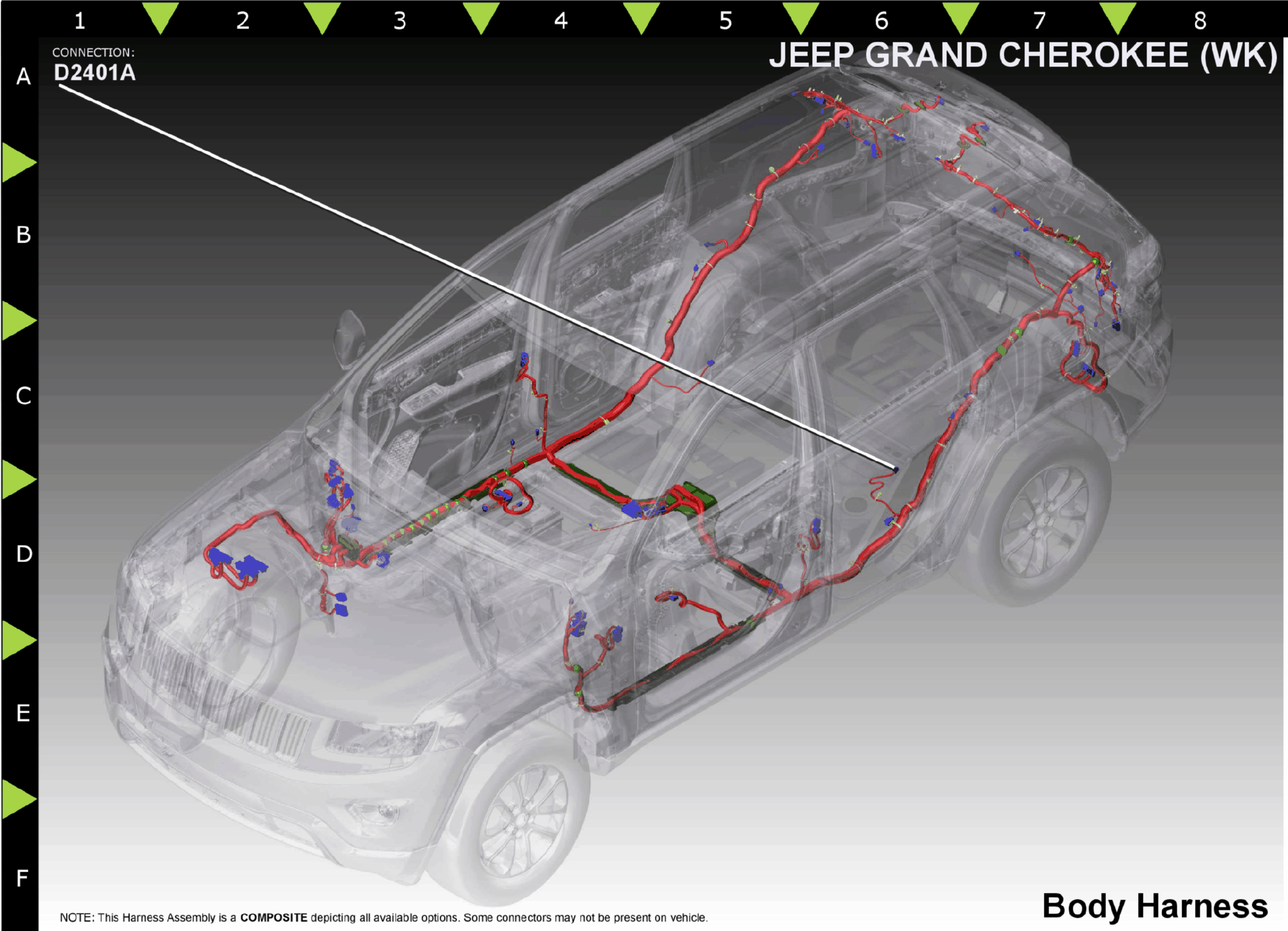

Heater-Seat Back-Left Rear (D2401A)
Harness-Family: Body
Color: LIGHT GRAY
Gender: FEMALE
Part Number: 7283-6449-40
Part Description: KAIZEN CONNECTOR
Connector No: D2401A
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P177 | LG/GY | ~~ | LEFT REAR SEAT HEATER CONTROL | N/A | ||
| 2 | P672 | LB/LG | 20 | LEFT REAR HEATED SEAT TEMP SENSE | N/A | ||
| 3 | P968 | TN/WT | 20 | HEATED SEAT SENSOR RETURN | N/A | ||
| 4 | Z916 | BK | ~~ | GROUND | N/A | ||
| 4 | Z923 | BK | 16 | GROUND | N/A | ||
|
|||||||
