Wiring-Trailer Tow 7-Way (D6644A)

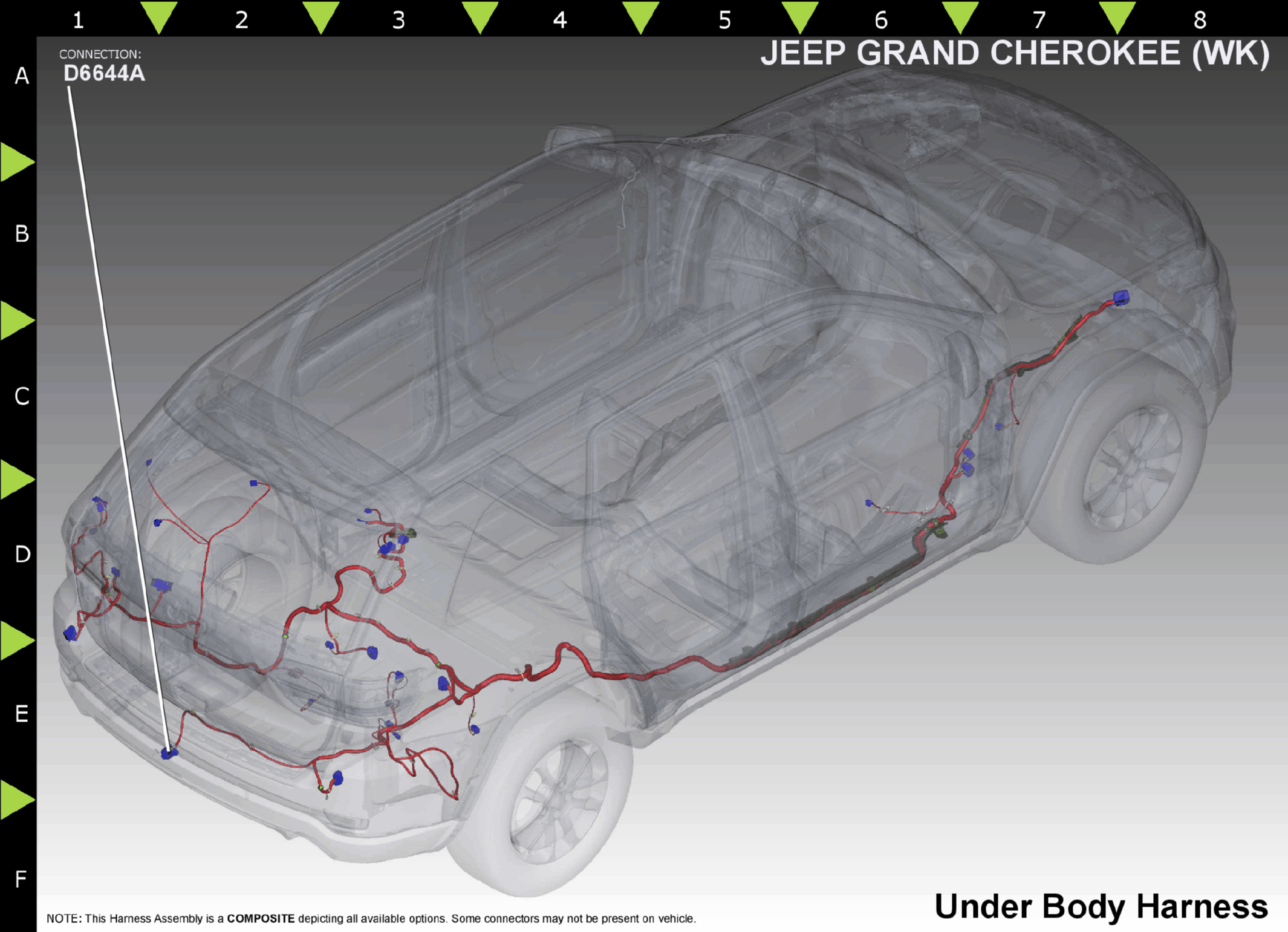

Harness-Family: Under_Body
Color: ~~
Gender: MALE
Part Number: 13626146
Part Description: Not Available
Connector No: D6644A
Option: ~~
Repair Kit Part Number: 68068628AA
Cavity Count: 7
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| A | L111 | WT/OR | 18 | TRAILER TOW BACKUP LAMP FEED | N/A | ||
| A00 | L111 | WT/OR | 16 | TRAILER TOW BACKUP LAMP FEED | N/A | ||
| B | Z917 | BK | 14 | GROUND | N/A | ||
| B00 | Z917 | BK | 14 | GROUND | N/A | ||
| C | B400 | DG | 14 | TRAILER TOW ELECTRIC BRAKE OUTPUT | N/A | ||
| C00 | B400 | DG | 14 | TRAILER TOW ELECTRIC BRAKE OUTPUT | N/A | ||
| D | L614 | LG | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
| D00 | L614 | LG | 18 | TRAILER TOW RIGHT STOP/TURN SIGNAL | N/A | ||
| E | A100 | RD/VT | 14 | FUSED B(+) | N/A | ||
| E00 | A100 | RD/VT | 14 | FUSED B(+) | N/A | ||
| F | L76 | WT/BR | 18 | TRAILER TOW RELAY OUTPUT | N/A | ||
| F00 | L76 | WT/BR | 18 | TRAILER TOW RELAY OUTPUT | N/A | ||
| G | L615 | YL | 18 | TRAILER TOW LEFT STOP/TURN SIGNAL | N/A | ||
| G00 | L615 | YL | 18 | TRAILER TOW LEFT STOP/TURN SIGNAL | N/A | ||
|
|||||||
