Vent-Seat Back-Right C2 (D6660B)

Harness-Family: Seat_Pass_2

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 2P KAIZEN YESC 1.5MM MALE SUB ASSEMBLY

Part Description: Not Available

Connector No: D6660B

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Vent-Seat Back-Right C2 Connector End View

Courtesy of CHRYSLER

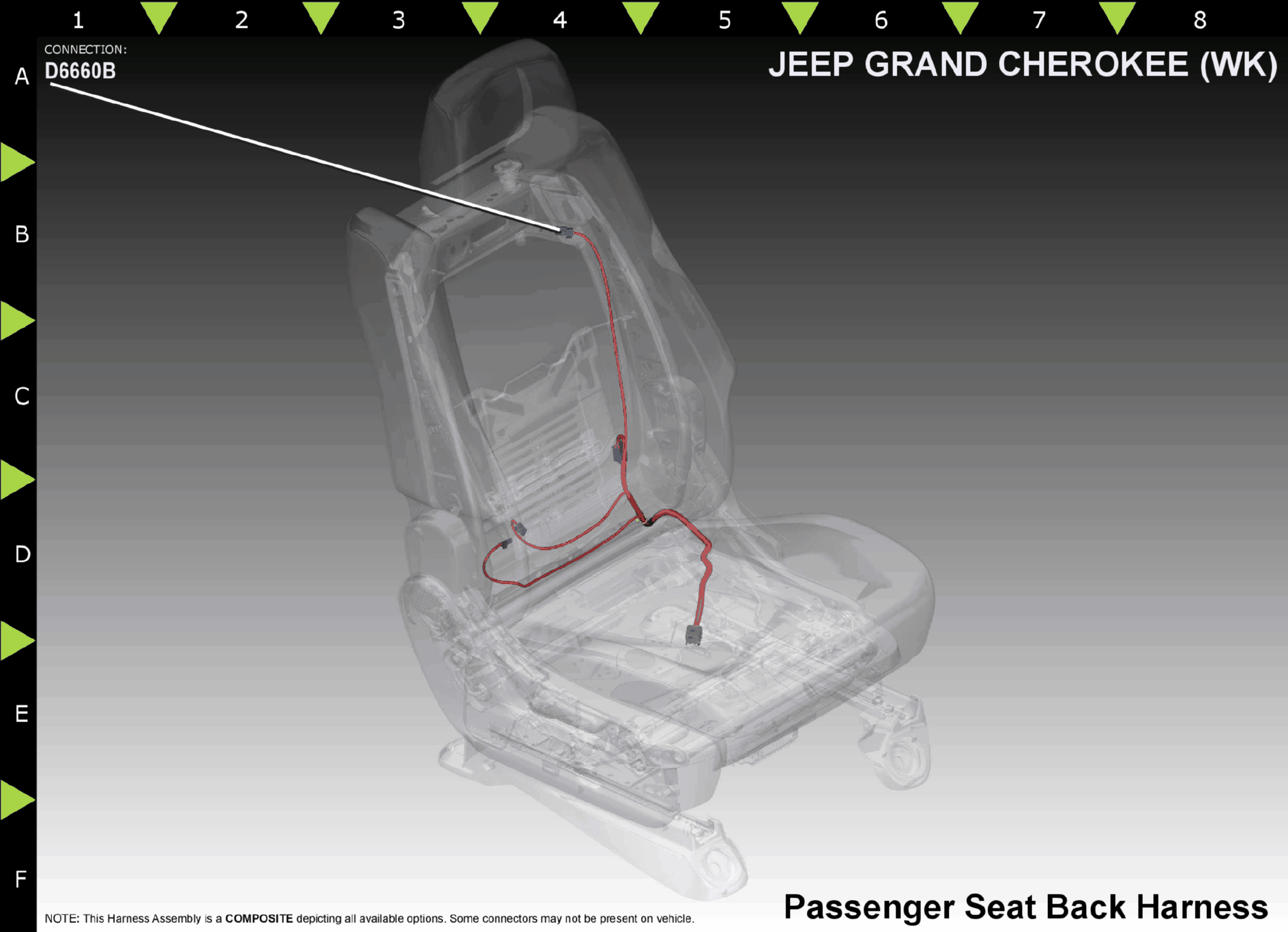

Fig 2: Vent-Seat Back-Right C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P422

LG/OR

RIGHT SEAT VENT FEED

N/A

P922

OR/LG

RIGHT SEAT VENT RETURN

N/A

⁽¹⁾	Pins not listed are not used for this connector
