Switch-Seat-Passenger (Standard) (D2290A)

Harness-Family: Seat_Cshn_Pass

Color: BLACK

Gender: FEMALE

Part Number: CONNECTOR PLUG HSG LIVING HINGE DESIGN

Part Description: Not Available

Connector No: D2290A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Switch-Seat-Passenger Connector End View (Standard)
GCWD1006320Courtesy of CHRYSLER

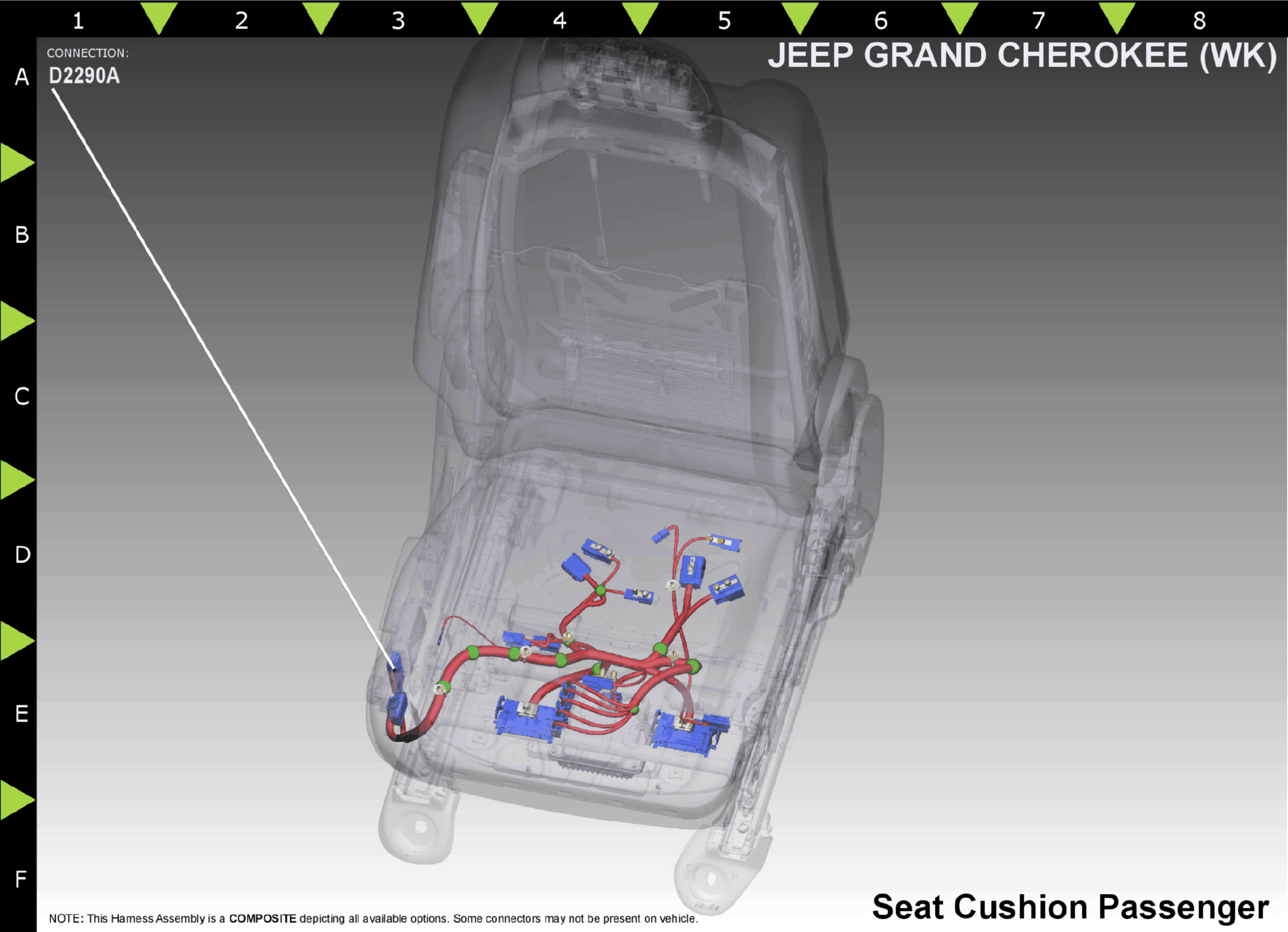

Fig 2: Switch-Seat-Passenger Component Location (Standard)
GCWD1001999Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 P42 LG/GY 16 PASSENGER RECLINER DOWN SWITCH SENSE N/A
3 P44 LG/VT 16 PASSENGER RECLINER UP SWITCH SENSE N/A
4 P14 LG/OR 16 PASSENGER SEAT HORIZONTAL FORWARD DRIVER N/A
5 P18 LG/OR 16 PASSENGER SEAT FRONT UP DRIVER N/A
6 A949 RD 14 FUSED B(+) N/A
7 Z919 BK 14 GROUND N/A
8 P16 LG/YL 16 PASSENGER SEAT HORIZONTAL REARWARD DRIVER N/A
9 P20 LG/LB 16 PASSENGER SEAT FRONT RISER DOWN DRIVER N/A
10 P10 LG/TN 16 PASSENGER SEAT REAR RISER UP DRIVER N/A
11 P12 LG/YL 16 PASSENGER SEAT REAR RISER DOWN DRIVER N/A
(1) Pins not listed are not used for this connector
