Fuse 08 20A (3.0L) (F0008U)

Harness-Family: PDC_UNDERHOOD

Color: BLACK

Gender: MALE

Part Number: Fuse-Ckt_Breaker

Part Description: Not Available

Connector No: F0008U

Option: 3.0L

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse 08 20a Connector End View (3.0L)

GCWD1006305

Courtesy of CHRYSLER

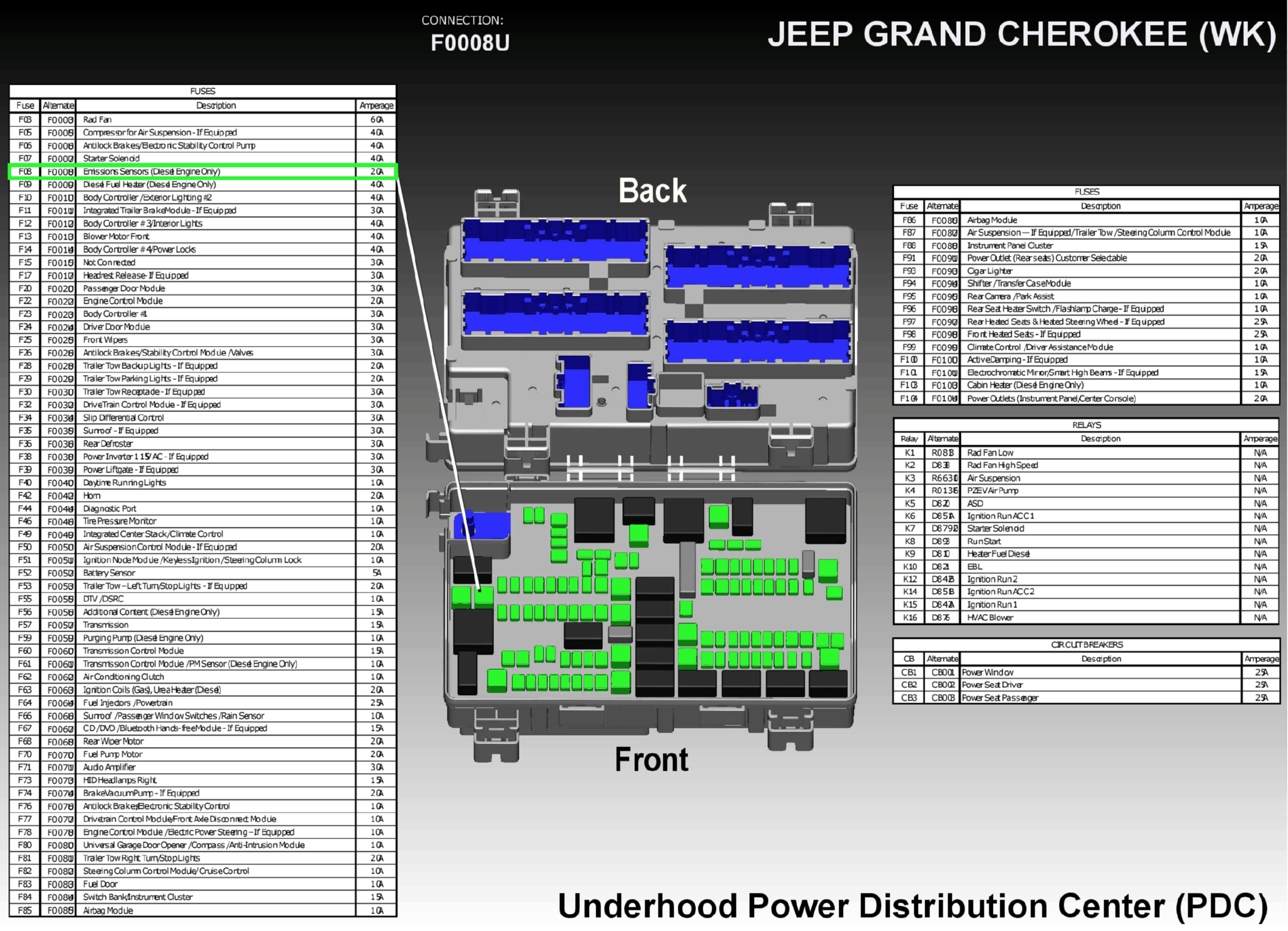

Fig 2: Fuse 08 20a Component Location (3.0L)

GCWD1002645

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A0

INTERNAL

NA

B(+)

N/A

2

F204

INTERNAL

NA

FUSED IGNITION SWITCH OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
