Connector-Star Can IHS IP C9 (D2601I)

Harness-Family: IP

Color: Black

Gender: MALE

Part Number: 1-1418639-1

Part Description: Not Available

Connector No: D2601I

Option: ~~

Repair Kit Part Number: 68137879AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Ip C9 Connector End View

Courtesy of CHRYSLER

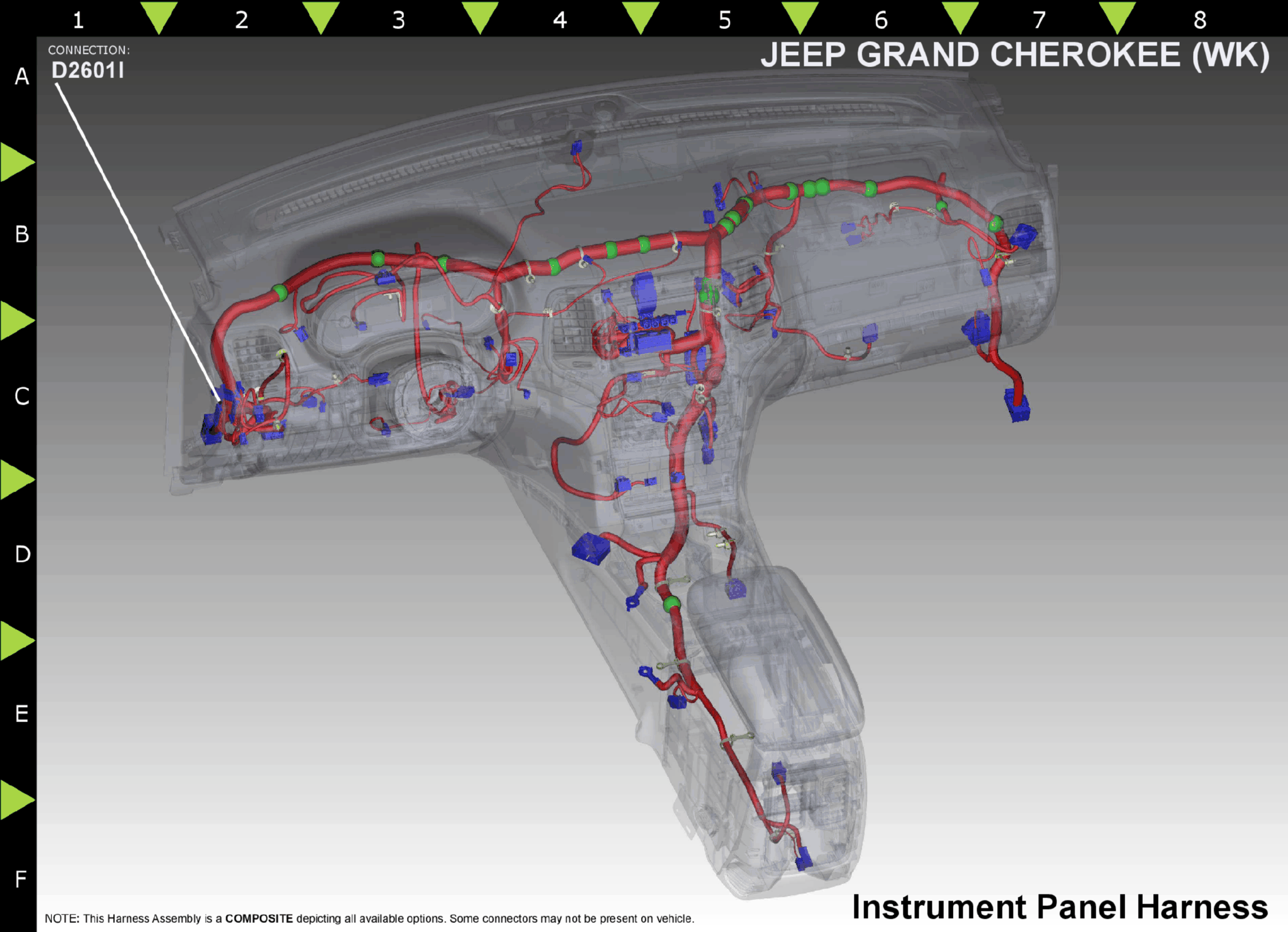

Fig 2: Connector-Star Can Ihs Ip C9 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D255

CAN I(+) INTRUSION DETECTION MODULE

N/A

D254

WT/VT

CAN I(-) INTRUSION DETECTION MODULE

N/A

⁽¹⁾	Pins not listed are not used for this connector
