Connector-Star Can IHS IP C12 (D2601L)

Harness-Family: IP

Color: Black

Gender: MALE

Part Number: 1-1418639-1

Part Description: Not Available

Connector No: D2601L

Option: ~~

Repair Kit Part Number: 68137879AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Ip C12 Connector End View

Courtesy of CHRYSLER

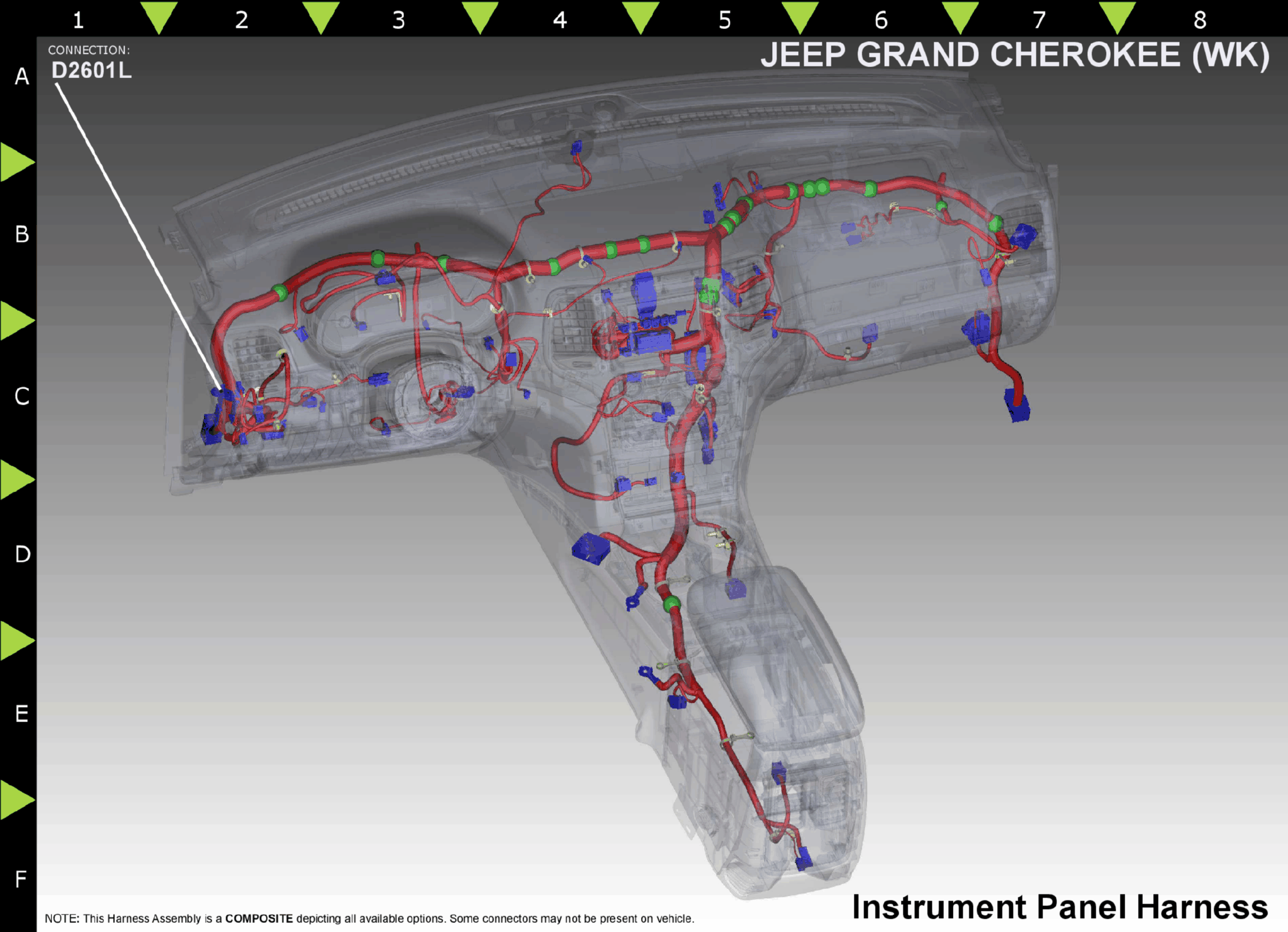

Fig 2: Connector-Star Can Ihs Ip C12 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D199

WT/GY

CAN IHS (+) - EXTERNAL DISK MODULE

N/A

D198

CAN IHS (-) - EXTERNAL DISK MODULE

N/A

⁽¹⁾	Pins not listed are not used for this connector
