Connector-Star Can IHS IP C1 (D2601A)

Harness-Family: IP

Color: ~~

Gender: MALE

Part Number: 1-1418640-1

Part Description: Not Available

Connector No: D2601A

Option: ~~

Repair Kit Part Number: 68137880AA

Cavity Count: 3

Fig 1: Connector-Star Can Ihs Ip C1 Connector End View

Courtesy of CHRYSLER

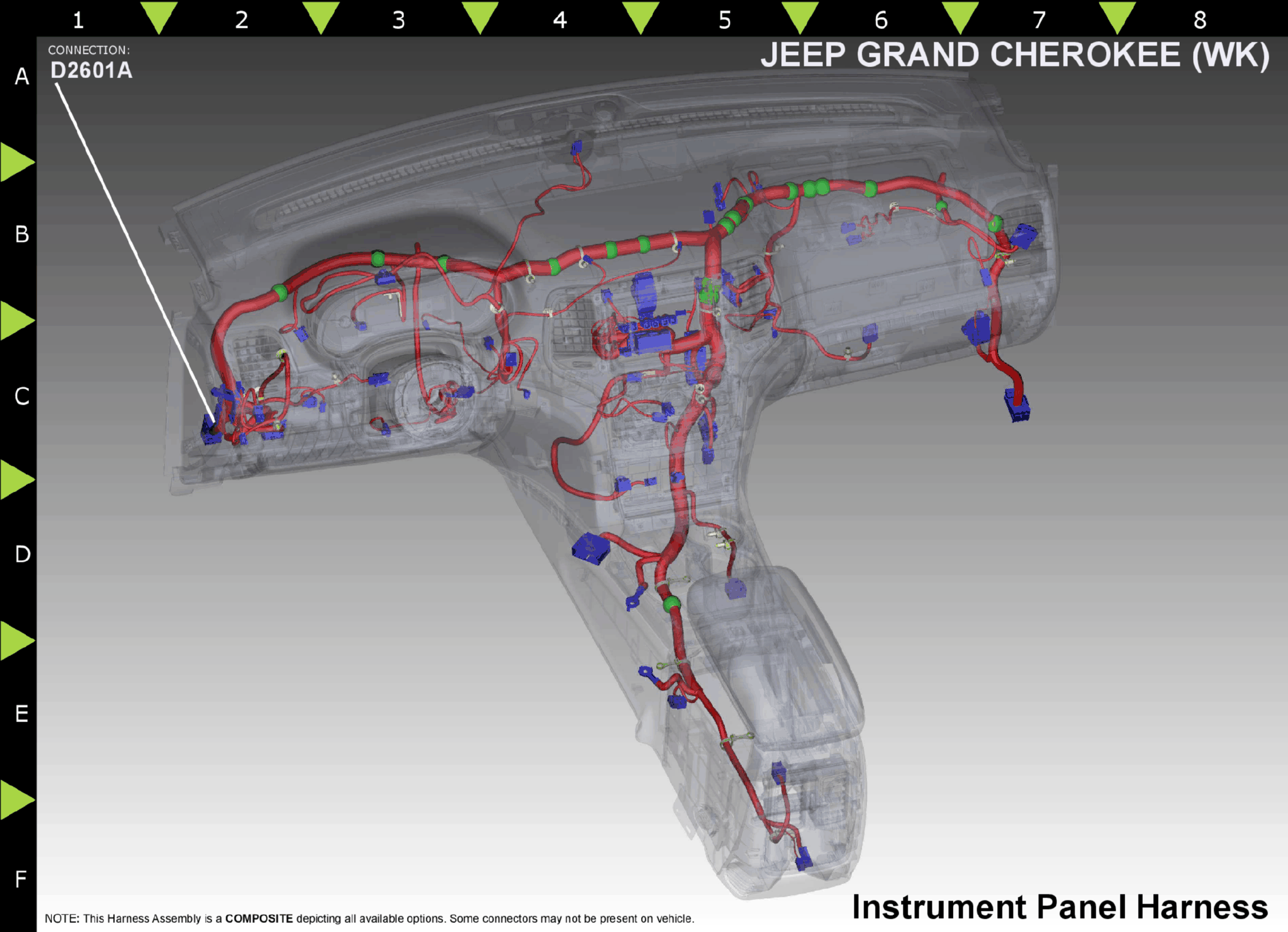

Fig 2: Connector-Star Can Ihs Ip C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D145

WT/LG

CAN IHS (+) - BODY CONTROL MODULE

N/A

D146

CAN IHS (-) - BODY CONTROL MODULE

N/A

Z912

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
