Connector-Star Can IHS Body C6 (D2602F)

Harness-Family: Body

Color: Black

Gender: MALE

Part Number: 1-1418639-1

Part Description: Not Available

Connector No: D2602F

Option: ~~

Repair Kit Part Number: 68137879AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Body C6 Connector End View

Courtesy of CHRYSLER

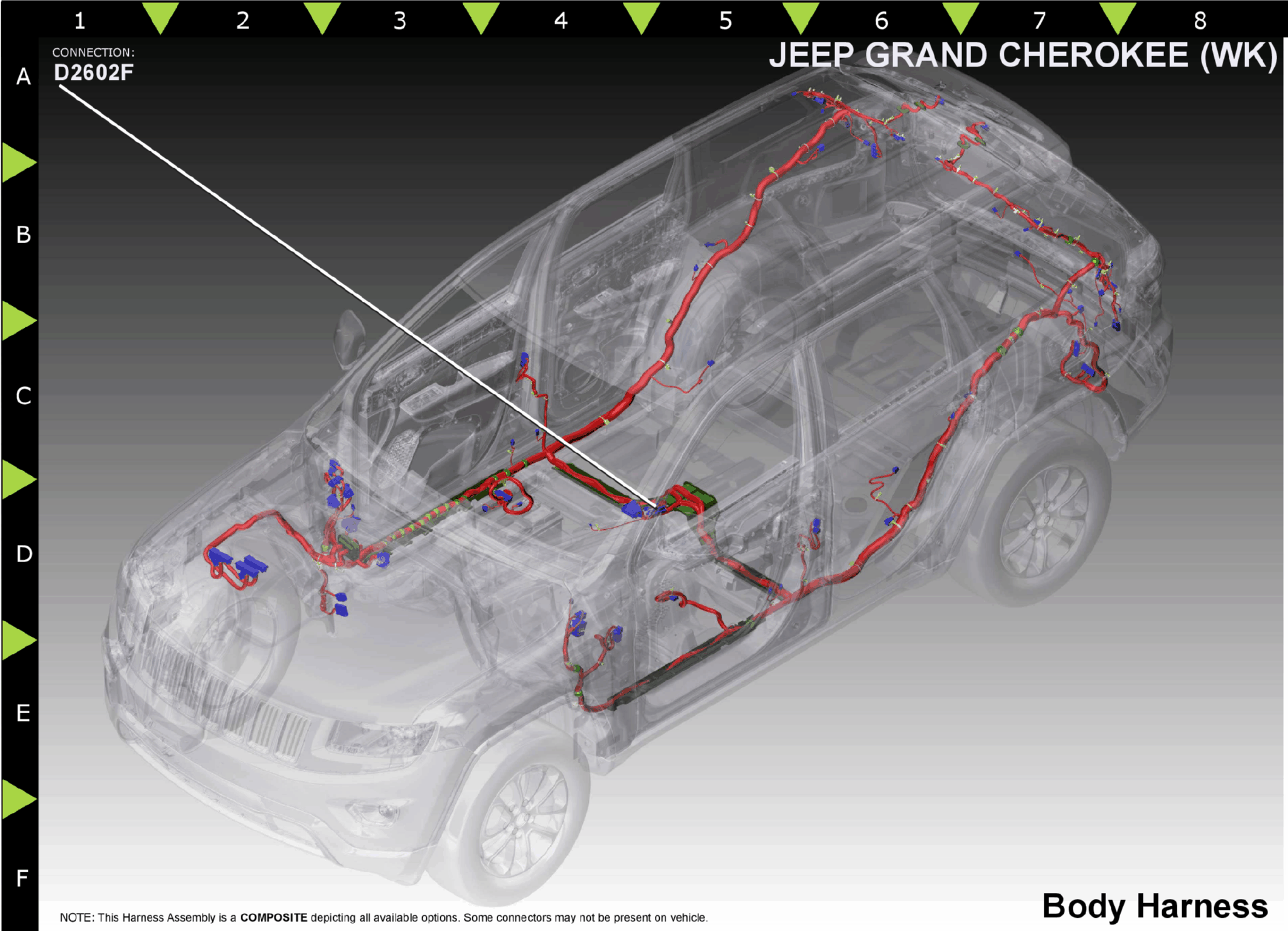

Fig 2: Connector-Star Can Ihs Body C6 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D165

WT/LB

COM - CAN_I(+) MEMORY SEAT MODULE

N/A

D166

COM - CAN_I(-) MEMORY SEAT MODULE

N/A

⁽¹⁾	Pins not listed are not used for this connector
