Connector-Star Can IHS Body C2 (D2602B)

Harness-Family: Body

Color: Black

Gender: MALE

Part Number: 1-1418639-1

Part Description: Not Available

Connector No: D2602B

Option: ~~

Repair Kit Part Number: 68137879AA

Cavity Count: 2

Fig 1: Connector-Star Can Ihs Body C2 Connector End View

Courtesy of CHRYSLER

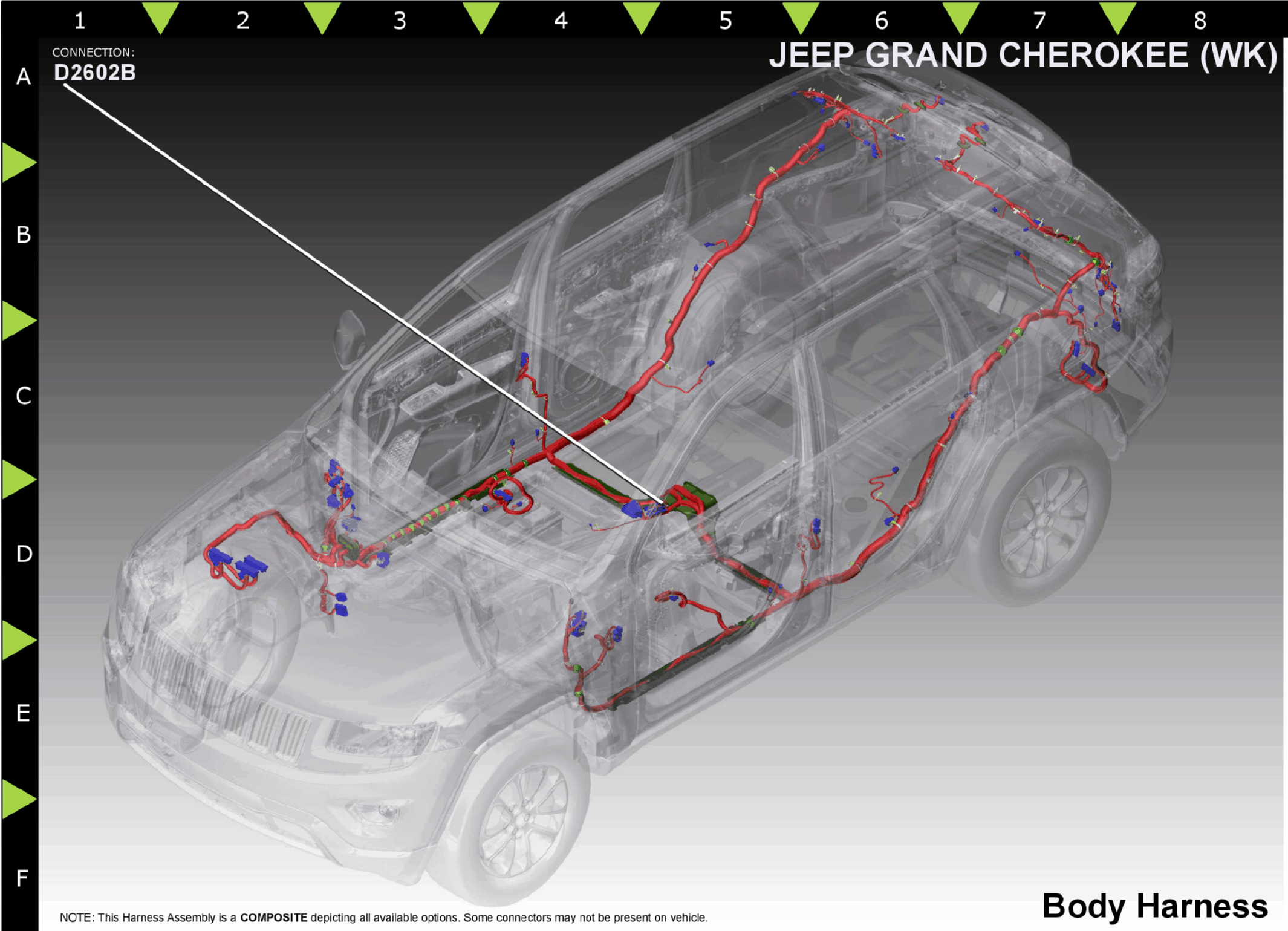

Fig 2: Connector-Star Can Ihs Body C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D251

WT/OR

COM___CAN_I____POWER_LIFTGATE_MODULE__

N/A

D250

COM___CAN_I____POWER_LIFTGATE_MODULE__

N/A

⁽¹⁾	Pins not listed are not used for this connector
