Connector-Star Can C IP C8 (D2599H)

Harness-Family: IP

Color: Natural

Gender: MALE

Part Number: 2-1418639-1

Part Description: Not Available

Connector No: D2599H

Option: ~~

Repair Kit Part Number: 68137881AA

Cavity Count: 2

Fig 1: Connector-Star Can C Ip C8 Connector End View

Courtesy of CHRYSLER

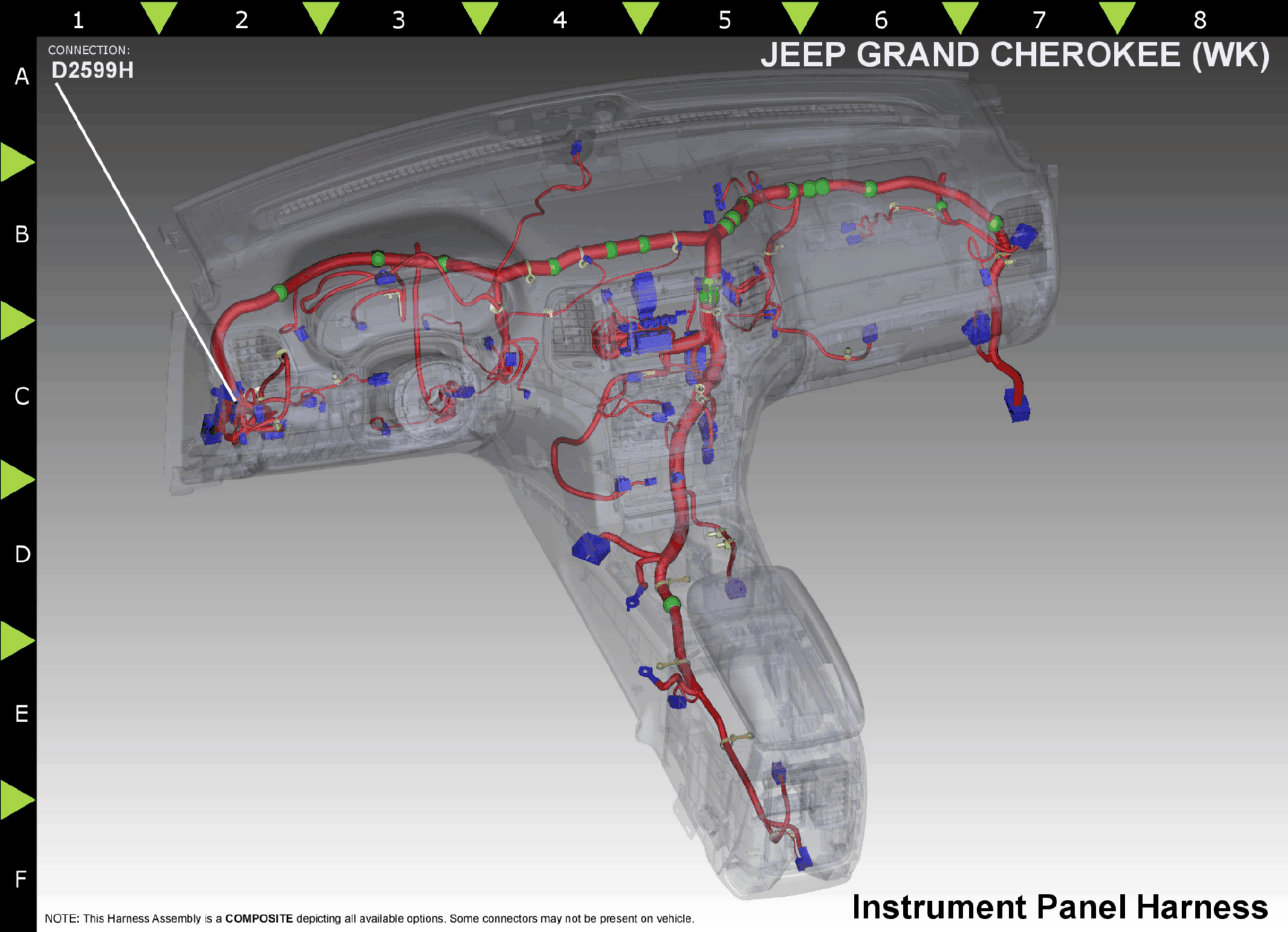

Fig 2: Connector-Star Can C Ip C8 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D57

GY/WT

CAN C (+) - DATA LINK CONNECTOR

N/A

D58

CAN C (-) - DATA LINK CONNECTOR

N/A

⁽¹⁾	Pins not listed are not used for this connector
