Speaker-Right Rear Door (D5911A)

Harness-Family: Door_Right_Rear

Color: WHITE

Gender: FEMALE

Part Number: 174921-1

Part Description: 070 SERIES MULTILOCK CONNECTOR PLUG HSG

Connector No: D5911A

Option: ~~

Repair Kit Part Number: 68040489AA

Cavity Count: 3

Fig 1: Speaker-Right Rear Door Connector End View

Courtesy of CHRYSLER

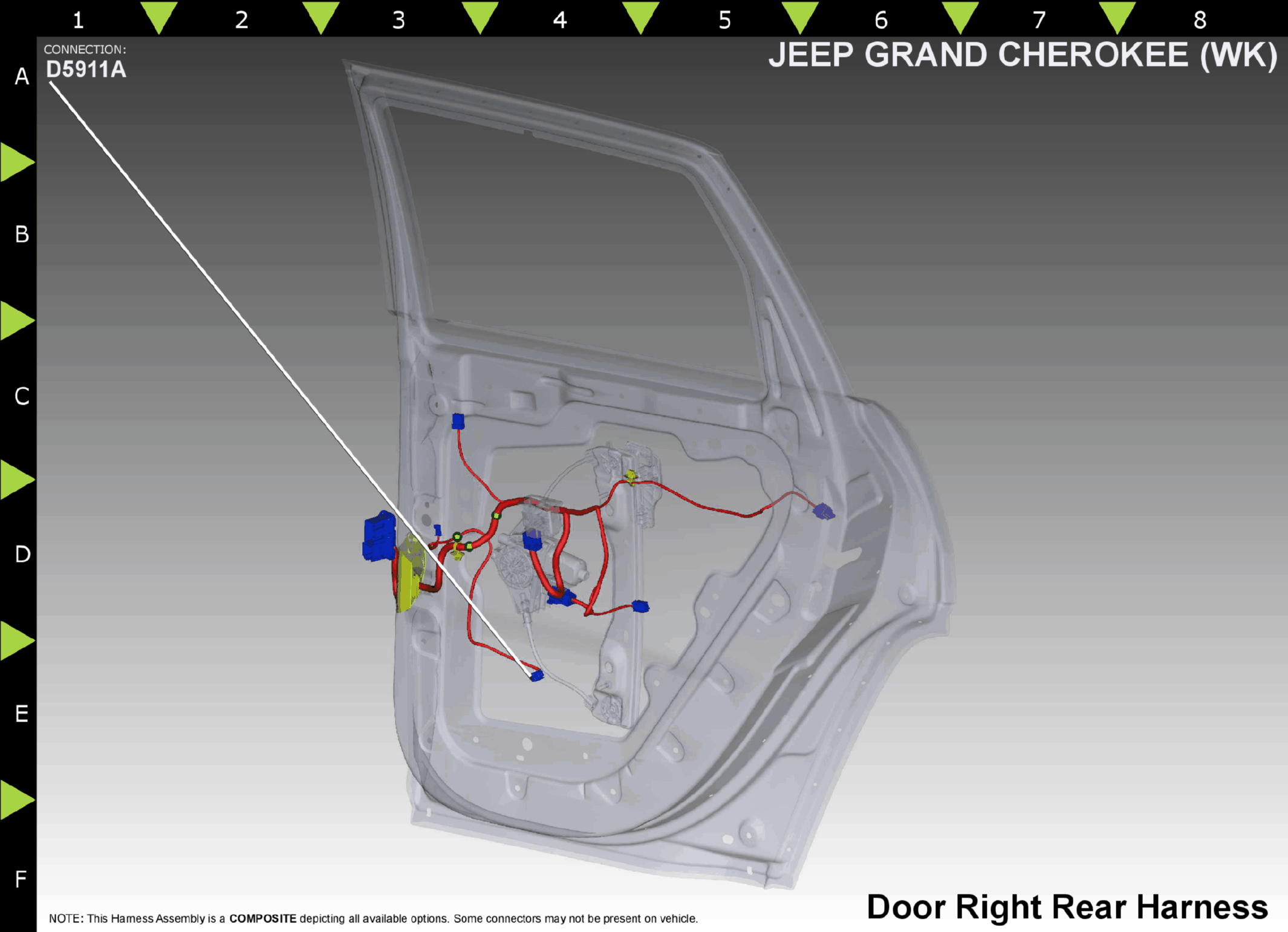

Fig 2: Speaker-Right Rear Door Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X206

DG/LG

RIGHT REAR SPEAKER (+)

N/A

X296

DG/GY

RIGHT REAR SPEAKER (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
