Solenoid-Fuel Pressure (3.0L Diesel) (D17A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 4510801

Part Description: Not Available

Connector No: D17A

Option: 3.0L DIESEL

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Solenoid-Fuel Pressure Connector End View (3.0L Diesel)

Courtesy of CHRYSLER

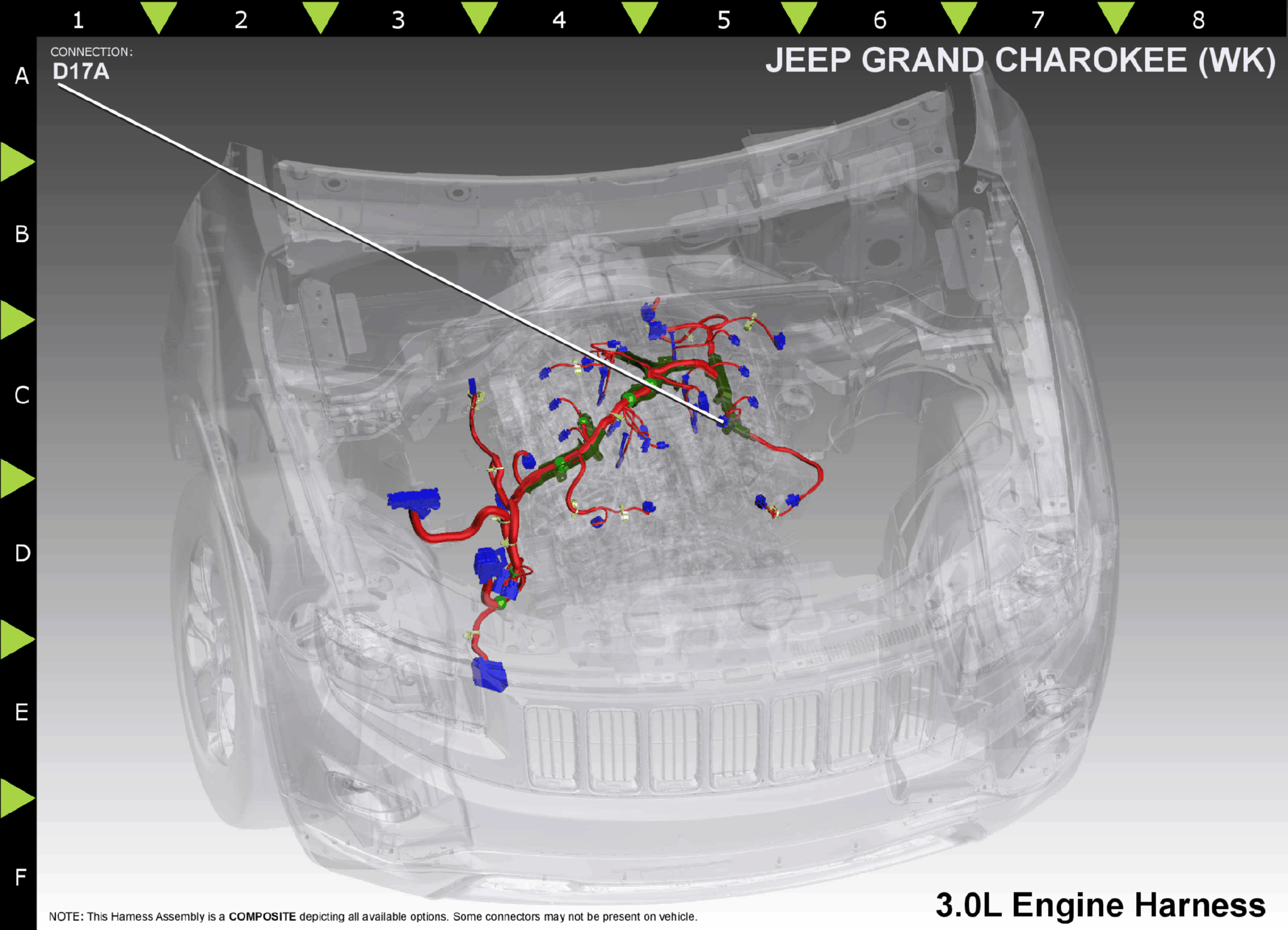

Fig 2: Solenoid-Fuel Pressure Component Location (3.0L Diesel)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K369

BR/OR

FUEL PRESSURE 12 VOLT SUPPLY

N/A

K646

FUEL PRESSURE REGULATOR CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
