Connector-Star Can C Dash C5 (D2600E)

Harness-Family: HDLP_Dash

Color: Natural

Gender: MALE

Part Number: 2-1418639-1

Part Description: Not Available

Connector No: D2600E

Option: ~~

Repair Kit Part Number: 68137881AA

Cavity Count: 2

Fig 1: Connector-Star Can C Dash C5 Connector End View

Courtesy of CHRYSLER

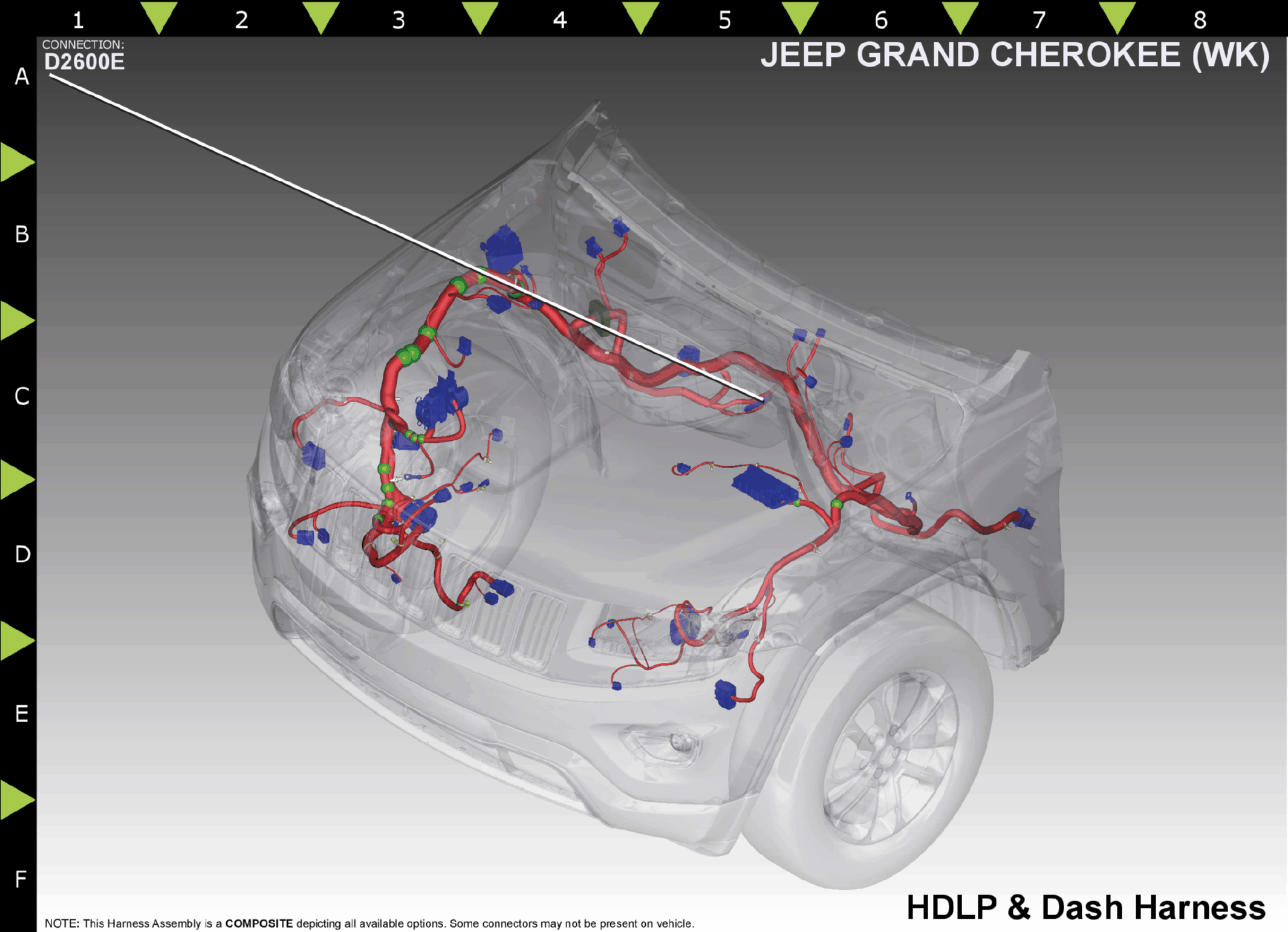

Fig 2: Connector-Star Can C Dash C5 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D153

GY/YL

CAN C (+) ACTIVE DAMPING MODULE

N/A

D152

CAN C (-) ACTIVE DAMPING MODULE

N/A

⁽¹⁾	Pins not listed are not used for this connector
