Connector-Star Can C Dash C1 (D2600A)

Harness-Family: HDLP_Dash

Color: ~~

Gender: MALE

Part Number: 2-1418640-1

Part Description: Not Available

Connector No: D2600A

Option: ~~

Repair Kit Part Number: 68137882AA

Cavity Count: 3

Fig 1: Connector-Star Can C Dash C1 Connector End View

Courtesy of CHRYSLER

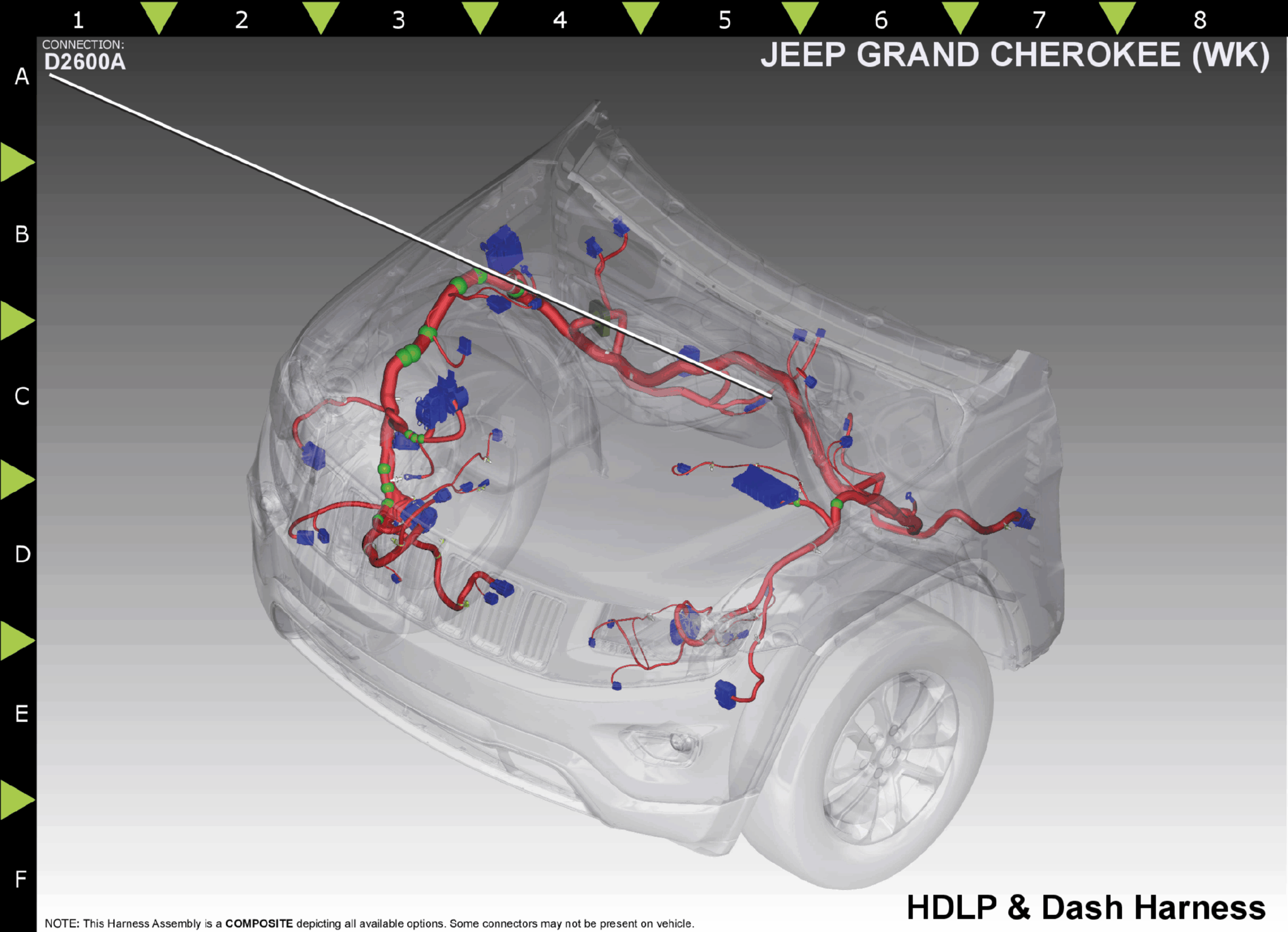

Fig 2: Connector-Star Can C Dash C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D65

WT/LB

CAN C BUS (+)

N/A

D64

WT/LG

CAN C BUS (-)

N/A

Z909

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
