Coil-Ignition 4 (3.6L) (D5207)

Harness-Family: Injector

Color: BLACK

Gender: FEMALE

Part Number: 1-1924067-1

Part Description: 1.2 STANDARD LATCH VERSION CONN W/O CPA

Connector No: D5207

Option: 36L

Repair Kit Part Number: 68137867AA

Cavity Count: 2

Fig 1: Coil-Ignition 4 Connector End View (3.6L)

Courtesy of CHRYSLER

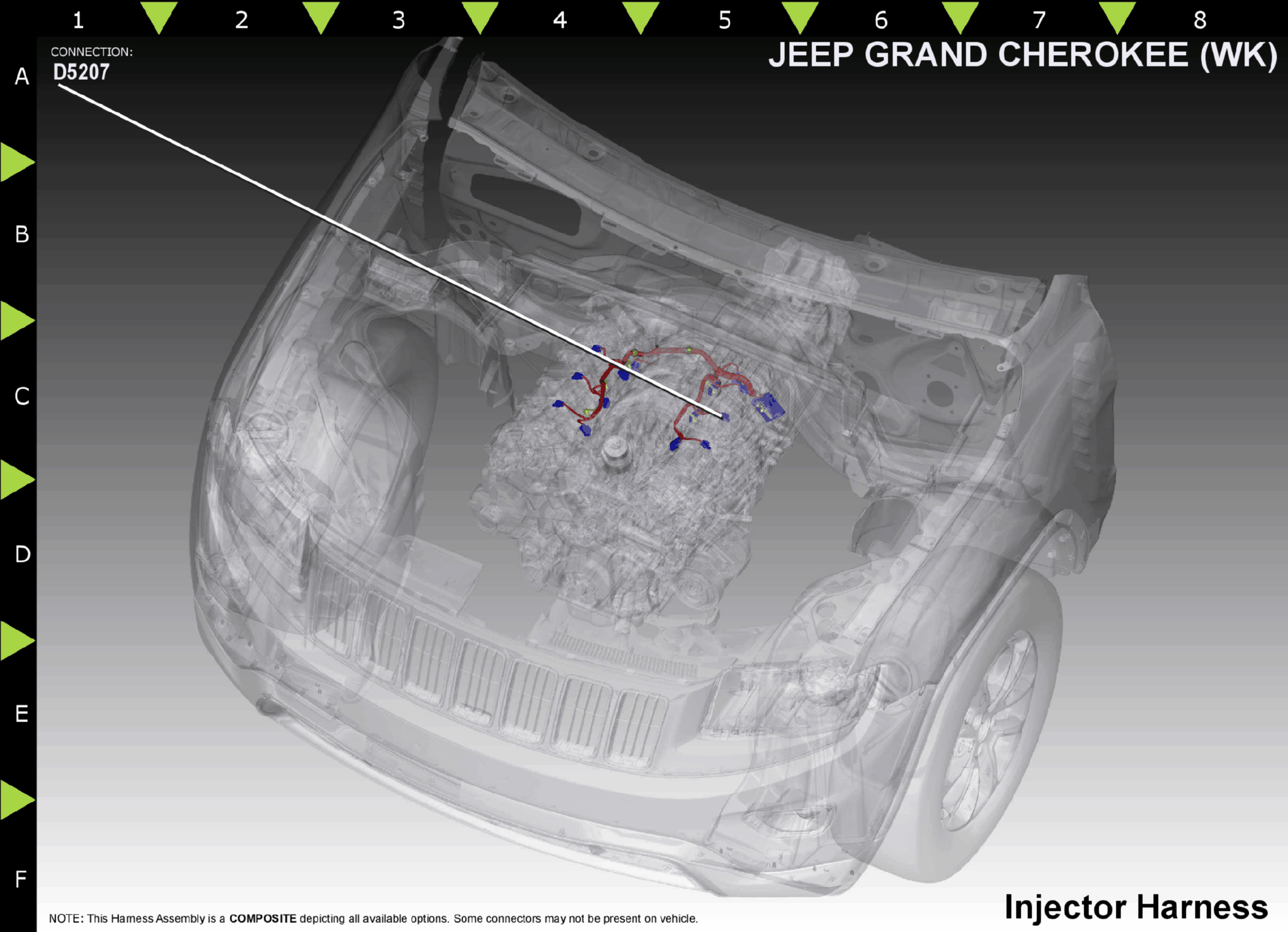

Fig 2: Coil-Ignition 4 Component Location (3.6L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K15

DB/GY

COIL CONTROL 4

N/A

F344

BR/GY

FUSED ASD RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
