Coil-Ignition 1 (5.7L/6.4L) (D5203A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 184270-1

Part Description: SSC - 1 X 3 PLUG ASY KEY A-C3 W/CPA

Connector No: D5203A

Option: 5.7L/6.4L

Repair Kit Part Number: Not Available

Cavity Count: 3

Fig 1: Coil-Ignition 1 Connector End View (5.7L/6.4L)

Courtesy of CHRYSLER

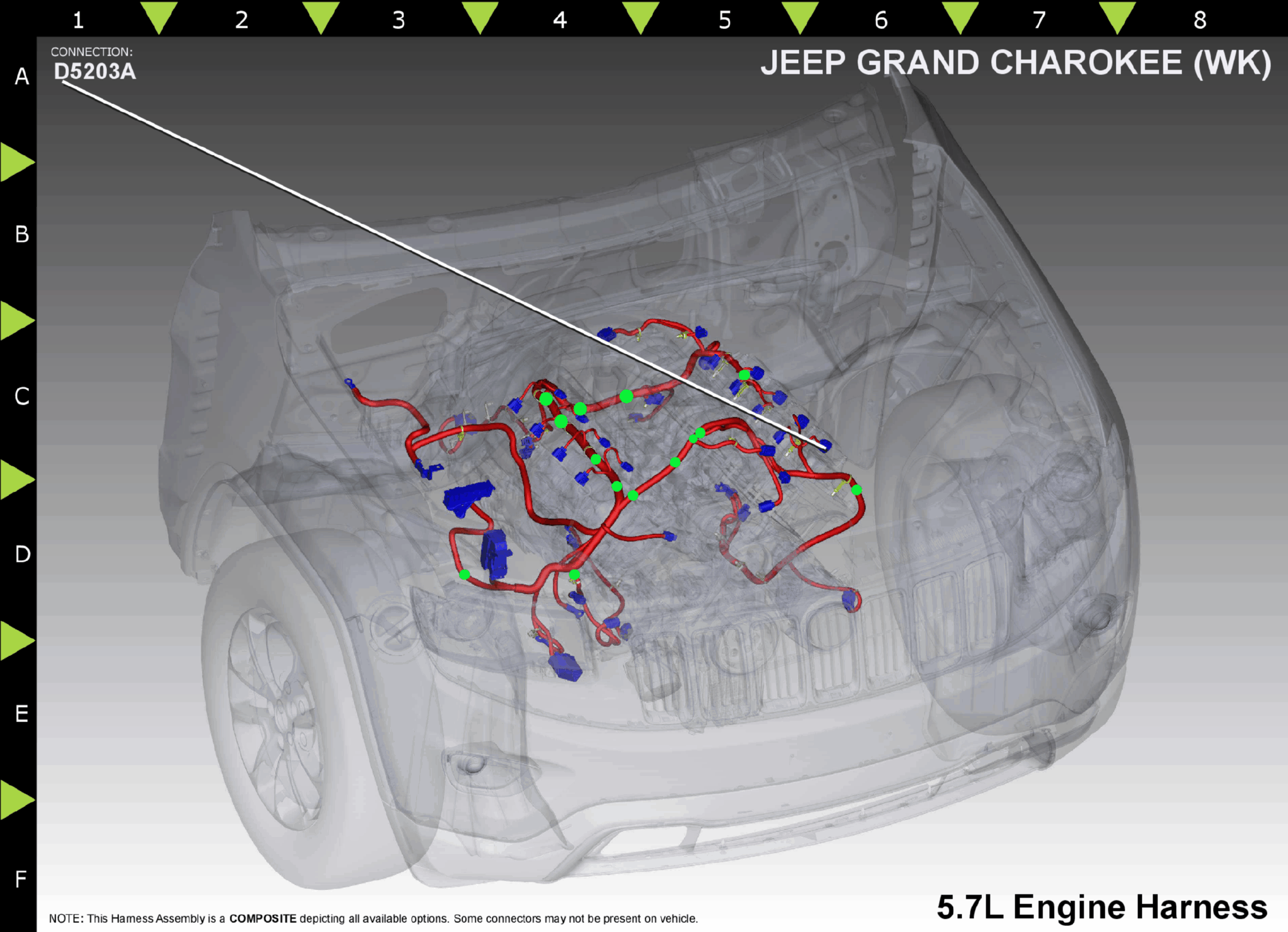

Fig 2: Coil-Ignition 1 Component Location (5.7L/6.4L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K19

DB/DG

COIL CONTROL 1

N/A

F343

BR/YL

FUSED ASD RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
