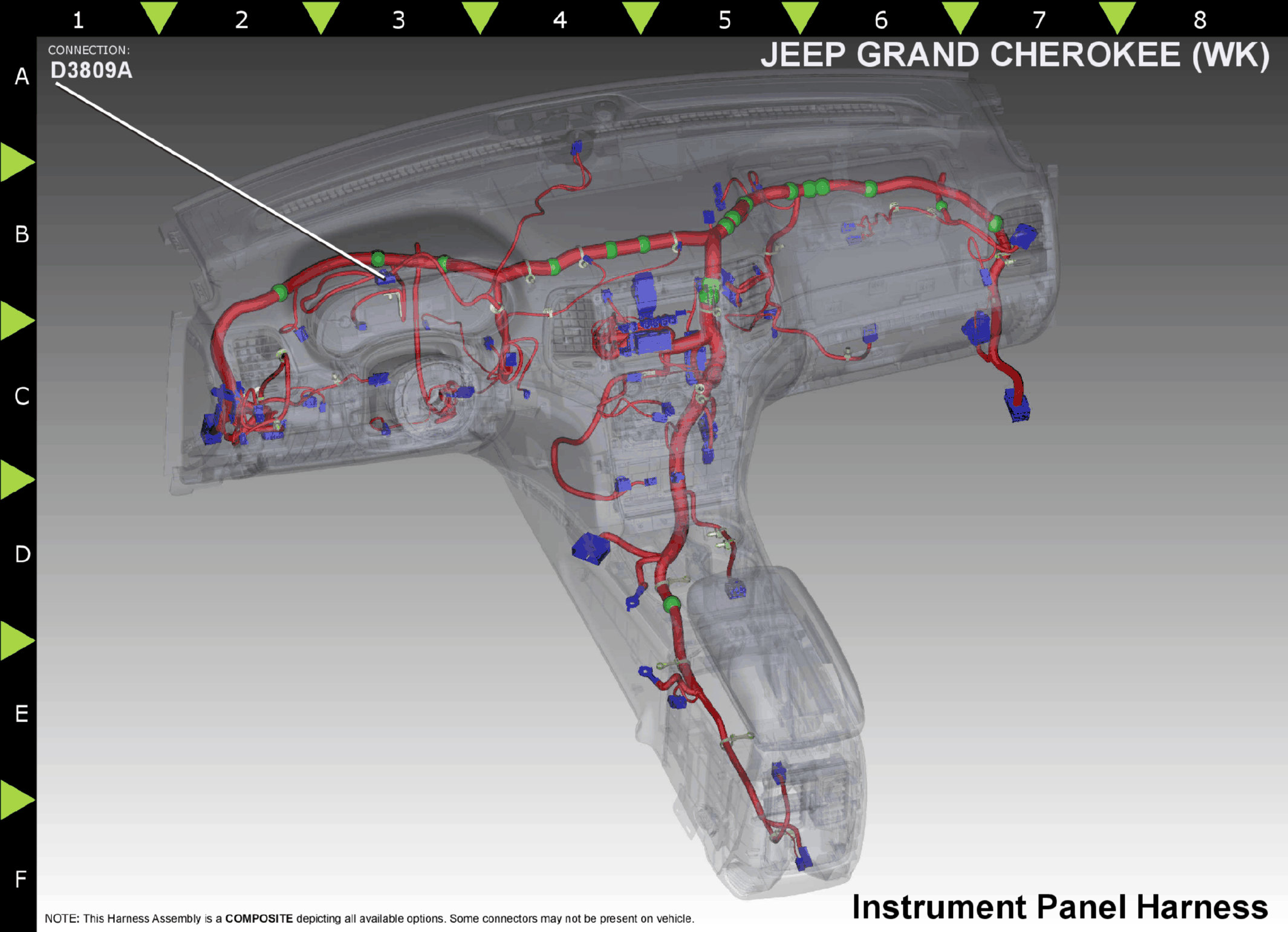

Cluster C1 (Instrument, CCN, IPC) (D3809A)
Harness-Family: IP
Color: BROWN
Gender: FEMALE
Part Number: 7283-9112-80
Part Description: KAIZEN CONNECTOR ASSEMBLY W/O CPA
Connector No: D3809A
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count: 20
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 6 | E12 | OR/GY | 20 | PANEL LAMPS DRIVER | N/A | ||
| 10 | A938 | RD | 20 | SWITCHED B(+) | N/A | ||
| 12 | D81 | BR/WT | 20 | CAN C (+) - CLUSTER | N/A | ||
| 13 | D82 | YL | ~~ | CAN C (-) - CLUSTER | N/A | ||
| 14 | G84 | VT/GY | ~~ | VTA WARNING INDICATOR | N/A | ||
| 16 | Z912 | BK | ~~ | GROUND | N/A | ||
| 19 | Z912 | BK | 20 | GROUND | N/A | ||
| 20 | F949 | PK/LG | ~~ | PWR___GENERIC_IGN_RUN_START_49 | N/A | ||
|
|||||||
