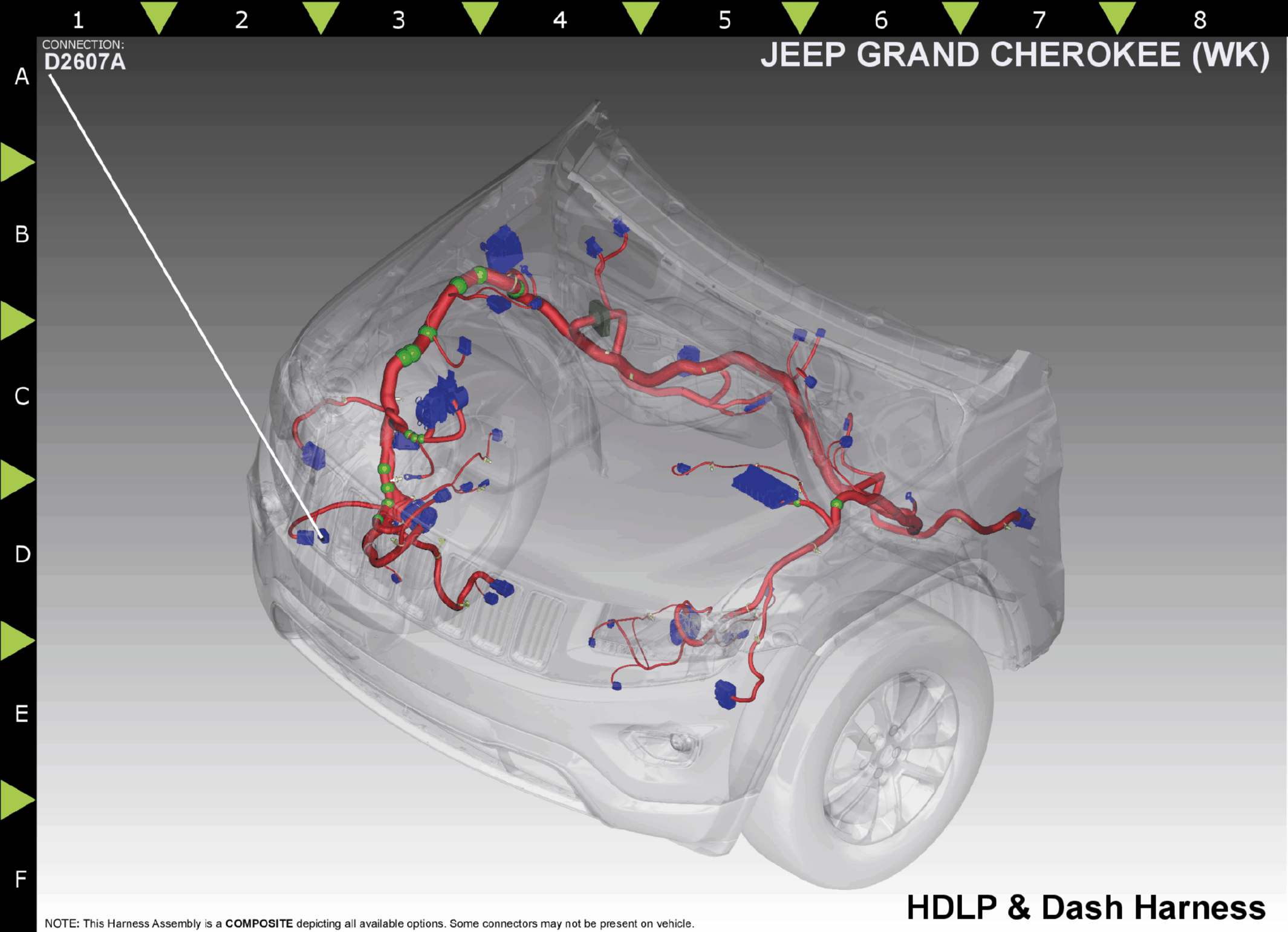

Assembly-Air Suspension Solenoid (D2607A)
Harness-Family: HDLP_Dash
Color: BLACK
Gender: FEMALE
Part Number: 42122600
Part Description: CONNECTOR
Connector No: D2607A
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count: 10
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Y31 | BR/VT | 20 | AXLE VENT SOL FT RT | N/A | ||
| 2 | Y35 | BR/DB | 20 | AIR TANK ENABLE SOL | N/A | ||
| 3 | Y33 | BR/GY | 20 | AXLE VENT SOL RR LT | N/A | ||
| 4 | Y34 | BR/YL | 20 | AXLE VENT SOL RR RT | N/A | ||
| 5 | Y30 | BR/OR | 20 | VALVE BODY FEED | N/A | ||
| 7 | Y13 | TN/WT | 20 | SENSOR COMMON RETURN | N/A | ||
| 8 | Y32 | BR/WT | 20 | AXLE VENT SOL FT LT | N/A | ||
| 9 | Y18 | TN/DG | 20 | PRESS SNSR SIG | N/A | ||
| 10 | Y10 | TN/BR | 20 | SNSR FEED | N/A | ||
|
|||||||
