Antenna-Radio (LHD) (D5902A)

Harness-Family: Body

Color: BLUE

Gender: MALE

Part Number: 1-2035242-3

Part Description: Not Available

Connector No: D5902A

Option: LHD

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Antenna-Radio Connector End View (LHD)

GCWD1006410

Courtesy of CHRYSLER

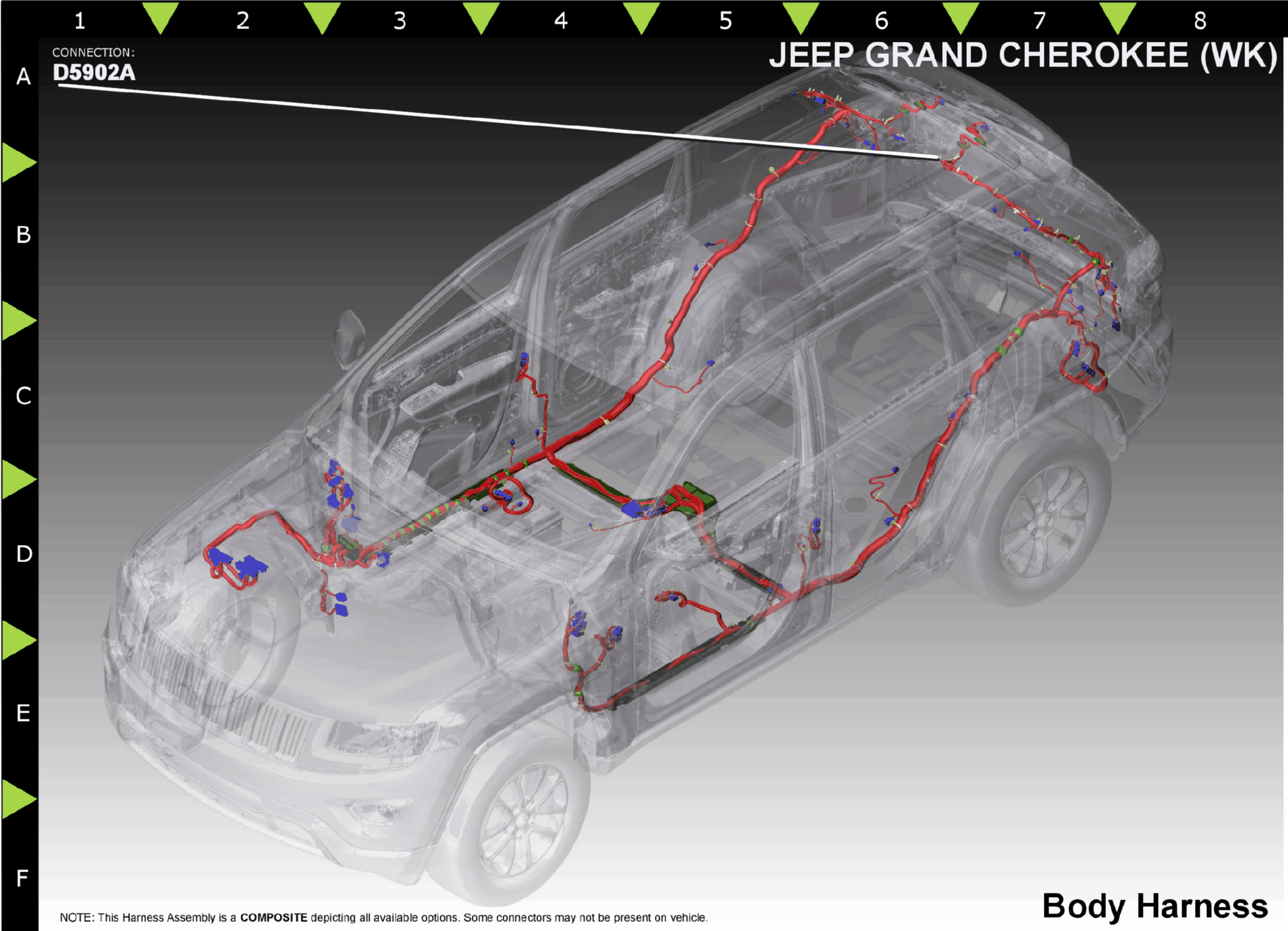

Fig 2: Antenna-Radio Component Location (LHD)

GCWD1004876

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D106

BK

16

SATELLITE RADIO ANTENNA SIGNAL

N/A

1

D126

BK

16

SATELLITE RADIO ANTENNA SHIELD

N/A

2

D107

BK

16

CELLULAR SHIELD

N/A

2

D7

BK

16

CELLULAR ANTENNA SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
