Amplifier-Radio C2 (Standard) (D3804B)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 175966-2

Part Description: INSULATOR

Connector No: D3804B

Option: Standard

Repair Kit Part Number: 68032269AA

Cavity Count: 16

Fig 1: Amplifier-Radio C2 Connector End View (Standard)

Courtesy of CHRYSLER

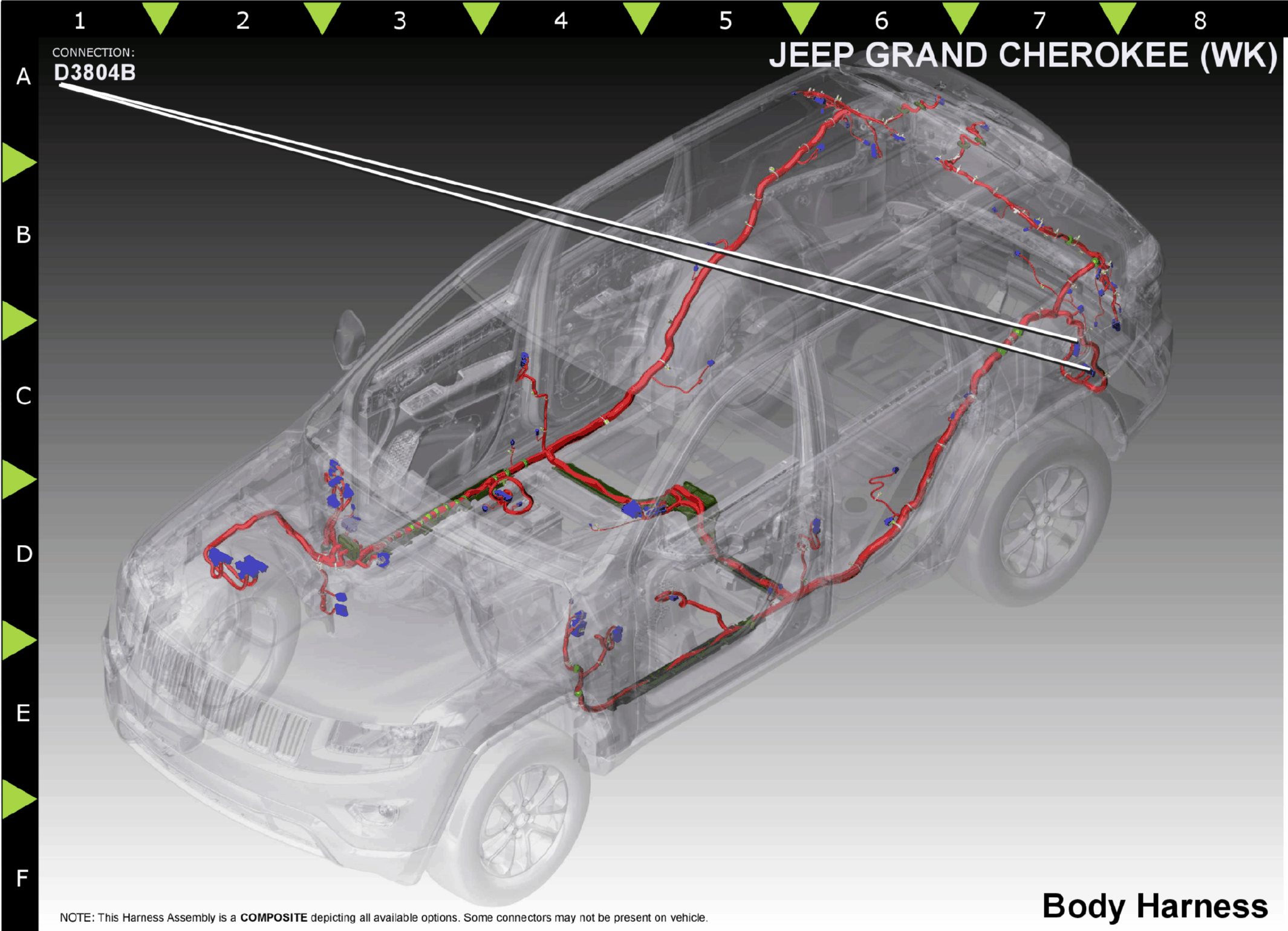

Fig 2: Amplifier-Radio C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X394

YL/GY

AMPLIFIED RIGHT REAR SPEAKER (-)

N/A

X300

GY/BR

AMPLIFIED SUBWOOFER 1 (+)

N/A

X206

DG/LG

RIGHT REAR SPEAKER (+)

N/A

X295

GY/DG

LEFT REAR SPEAKER (-)

N/A

X391

DG/WT

AMPLIFIED SUBWOOFER 2 (-)

N/A

X202

DG/VT

RIGHT FRONT SPEAKER (+)

N/A

X201

GY/VT

LEFT FRONT SPEAKER (+)

N/A

X304

DG/BR

AMPLIFIED RIGHT REAR SPEAKER (+)

N/A

X390

DG/BR

AMPLIFIED SUBWOOFER 1 (-)

N/A

X296

DG/GY

RIGHT REAR SPEAKER (-)

N/A

X205

GY/LG

LEFT REAR SPEAKER (+)

N/A

X301

GY/WT

AMPLIFIED SUBWOOFER 2 (+)

N/A

X292

DG/YL

RIGHT FRONT SPEAKER (-)

N/A

X291

GY/YL

LEFT FRONT SPEAKER (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
